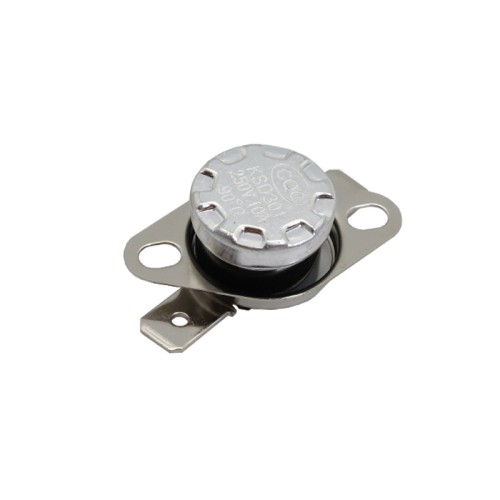

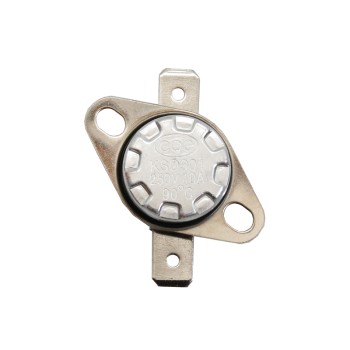

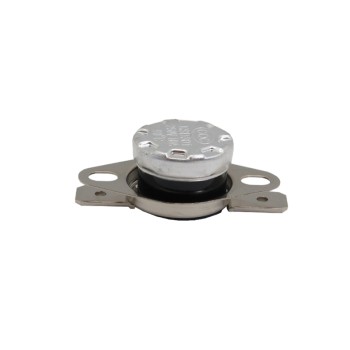

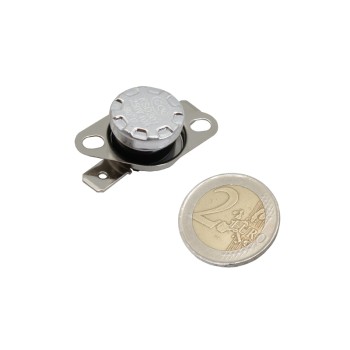

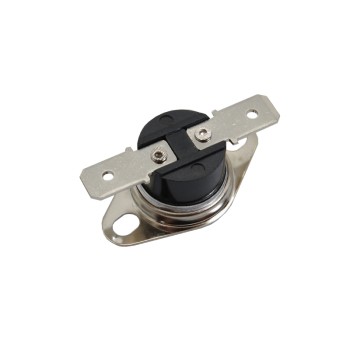

90 degree thermo switch

A thermoswitch or thermal switch is a component used to measure temperature. The function of a thermoswitch varies based on temperature changes in an enclosed or open environment. Thermoswitches are automatic electrical controllers that are placed in the environment to regulate temperature and open and close based on a defined temperature. The structure of these components is both mechanical and electrical. This device is designed to turn off the device when the temperature exceeds a certain limit and turn it on when the temperature falls below a certain limit. Thermoswitches come in various types and are made with different temperature sensors. Therefore, these sensors can be heat or cold controllers. The above thermoswitch is from the NC or normally closed series, which is capable of operating at a temperature of 90 degrees Celsius, and in fact, it operates closed at temperatures below 90, and when the desired temperature is reached, the switch opens and the connection is disconnected.

1. power supply temperature control
2. medical equipment
3. water heaters
4. office automation
5. industrial equipment
6. cooling and heating equipment
7.  microwave
8. tester heaters

specifications of the 90-degree thermo switch model foriot - nc:

1. body material: metal
2. color: silver
3. temperature: 90 degrees celsius
4. current: 10 amperes
5. voltage: 250 volt ac
6. equipped with electrical protection
