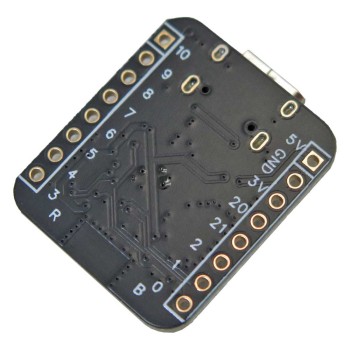

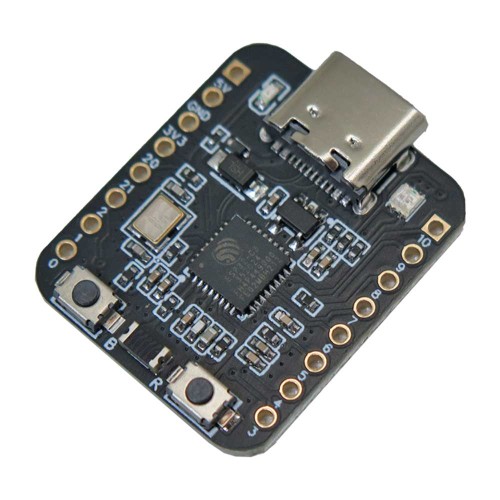

ESP32-C3 MiNi Development Board with Built-in Bluetooth and Wi-Fi

The ESP32-C3 is a new chip from Espressif Systems that runs on the RISC-V architecture and supports Wi-Fi and Bluetooth.

The ESP32-C3 MiNi development board features a single-core 32-bit RISC-V processor running at up to 160 MHz, as well as Wi-Fi 802.11 b/g/n (2.4 GHz) for wireless connectivity and Bluetooth Low Energy (BLE) for communication. Supports versatile wireless.

Supports Arduino IDE and other development environments for ESP32. The Type-C port is designed for programming and power, and several general purpose input/output (GPIO) pins for connecting sensors, actuators and other peripherals. To control it, you can use the "Freenove_WS2812_Lib_for_ESP32" library.

Buttons:

• Reset button: to reset the microcontroller.
• User button: can be programmed for different functions.

Dev Board with Wi-Fi and Bluetooth Application:

1. Smart home automation
2. Remote control systems
3. security systems
4. Wearable technology
5. IoT sensors and actuators
6. Portable devices
7. Wi-Fi weather station
8. Smart door lock
9. Remote control car

Dev Board with Wi-Fi and Bluetooth Specifications:

1. Input voltage: 3.3 - 6V
2. Working current: up to 325mA
3. Operating frequency: 160MHz
4. Flash memory: 4MB
5. Number of GPIO outputs on the board: 13
6. 12-bit ADC support: two 6-channel
7. Connector type: Type-C
8. Internal memory capacity: 384 KB
9. Wi-Fi standard: 2.4 GHz, 802.11b/g/n, 802.11 mc (150 Mbps)
10. Bluetooth standard: Bluetooth Ver5.0
