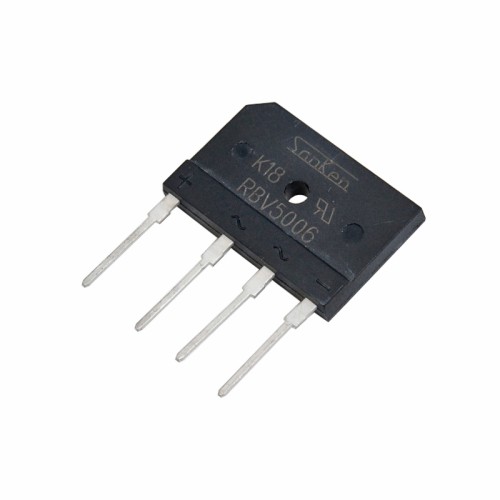

RBV5006 Rectifier Diode Bridge [50A]

The RBV5006 bridge rectifier is a high-current comb-style diode bridge designed to convert AC power to DC in power supply and regulator circuits. This diode has an average current of 50 amps and a maximum voltage of 600 volts DC, and it can withstand AC voltages up to 600 volts peak and 420 volts RMS very well. The structure of this diode bridge is single-phase silicon, and it is offered with a molded and durable plastic body, which also has a low manufacturing cost. This product has four plated pins that allow easy soldering onto printed circuit boards or assembly on experimental boards or breadboards.

During rectification operation, the internal diodes have a maximum forward voltage of 1.1 volts at 25 amps and can withstand reverse voltages up to 600 volts. This industrial comb-style diode bridge (rectifier) RBV5006, with a 600-volt, 50-amp rating, is among the active and durable components in the single-phase rectifier category. In terms of the MIL-STD-202, Method 208 standard, this product has high quality and stability, and with copper silver pins and a sturdy and durable structure, it is very suitable for industrial applications and high-current circuits.

The ability to withstand non-repetitive surge current up to 400 amps is another outstanding feature of this product, making it ideal for applications requiring high instantaneous current. The 50-amp, 600-volt diode bridge is designed to be easily installed on printed circuit boards and to meet the professional needs of electronics engineers and industrial power supply designers. The storage temperature range of this rectifier is between -40 degrees Celsius and 150 degrees Celsius, providing high flexibility in different environments.

This industrial high-voltage diode bridge is very suitable for use in power supplies, regulators, industrial power equipment, electronic control circuits, and research projects. The RBV5006 diode bridge, with its standard design and easy installation on various boards, offers a combination of quality, performance, and reasonable price, and is the ideal choice for projects requiring reliable high-current AC-to-DC conversion. By complying with industrial standards and using durable materials, this product provides the possibility of long-term and trouble-free operation in sensitive circuits.

Other important features of this 50-amp, 600-volt diode bridge include a structure resistant to heat and high instantaneous voltages, which makes it perform stably even under difficult operating conditions. Also, the RBV5006 diode, with its single-phase design and average current of 50 amps, is fully suitable for industrial applications and high-voltage power equipment.

RBV5006 bridge rectifier Application:

1. - Use in industrial power supplies for converting AC power to DC with high current
2. - Application in voltage regulators for stabilizing the output voltage of the circuit
3. - Installation in control circuits of power equipment and electric motors
4. - Application in industrial equipment and electrical panels for rectifying AC current
5. - Use in research and educational projects requiring 50 amps of current and 600 volts
6. - Application in protective circuits and electronic systems with high voltage and high instantaneous current

High Power Diode Specification:

1. Maximum repetitive reverse voltage: 600 volts
2. Maximum forward voltage: 600 volts
3. Maximum RMS reverse voltage: 420 volts AC
4. Average forward current: 50 amps
5. Maximum non-repetitive surge current: 400 amps
6. Maximum forward voltage drop at 25 amps: 1.1 volts
7. Number of pins: 4
8. Mounting type: Through Hole
9. Storage temperature: -40 to 150 degrees Celsius
10. Diode structure: Single-phase silicon with silver-plated copper pins
11. Body shape: Linear with molded plastic body

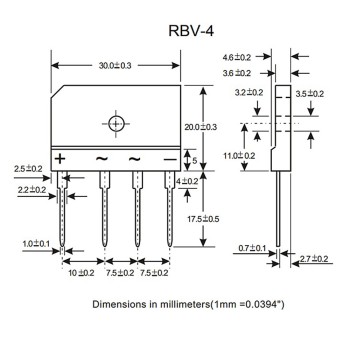

12. Dimensions: 50 × 25 × 15 mm
