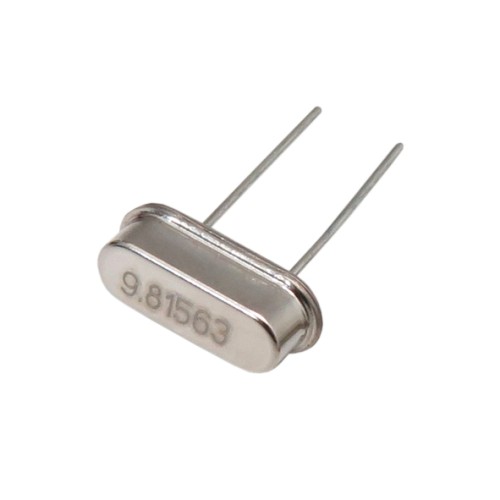

Crystal 9.81563 MHz

One of the most important and widely used components in the electronics industry is quartz crystals. The function of this component is to maintain the frequency of oscillator circuits at a specific frequency, and this is due to the piezoelectric properties of the mineral that makes up this component, namely quartz (Silicon Oxide).

A crystal is a 2-base component that starts to oscillate when a dc voltage is applied to its bases. This product is a Crystal 9.81563 MHz oscillator, which is used in many cases to produce a fixed frequency.

application of DIP Frequency Crystal 9.81563MHz:

1. construction of resonators
2. as an external crystal
3. telecommunication circuits

specifications DIP crystal 9.81563MHz:

1. nominal frequency: 9.81563mhz
2. parallel resonance load capacitance: 10pf
3. maximum shunt capacitance: 7pf
4. operating temperature range: -40°c to +125°c
5. minimum insulation resistance: 500 megaohms
