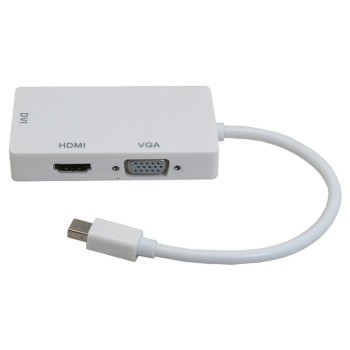

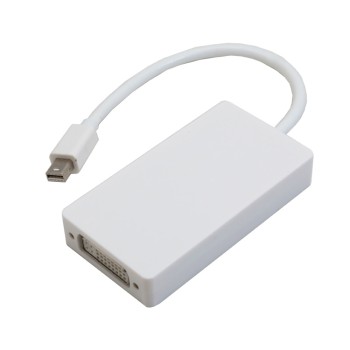

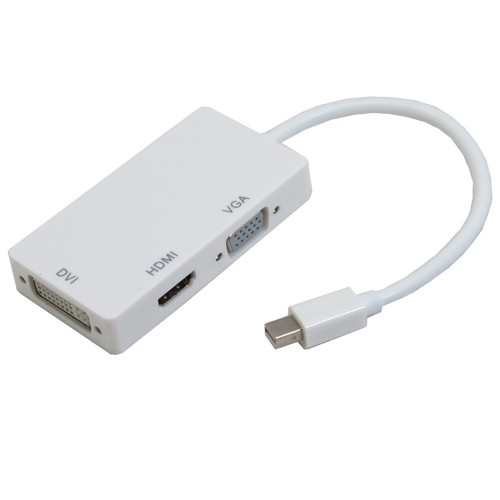

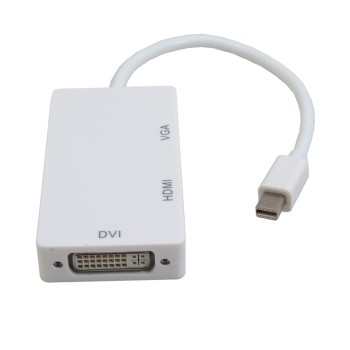

Mini DP to HDMI VGA and DVI Convert

It can be used to convert the Apple mini display into a combo to connect a MacBook or iMac to a video projector and displays that have a DVI/VGA/HDMI port. Any Mac computer and devices that have a Thunderbolt or Mini Display port, these conversions allow you to use an adapter to connect to an external display or projector. You can use the external screen as your main screen or to extend your desktop screen.

This product has three output ports that you can choose at any time depending on your use. The function of each port is described below:

DVI output, connecting DVI devices with a DVI cable.

HDMI output, connect HDMI devices using an HDMI cable.

VGA output, connecting VGA devices using a VGA cable.

Mini DisplayPort, the ability to Thunderbolt connected devices.

If you're using a Mac, make sure it has either a Mini DP or Thunderbolt port

1. Support Mini DisplayPort 1.1a input dual mode.

2. HDMI can support audio output for iMac (Late 2009) and MacBook Pro (Mid 2010) and Microsoft Surface Pro 1 2 3

3. Support HDMI / DVI / VGA output with maximum resolution of p @ 60 Hz, 225 MHz / 2.25 Gbps per channel (6.75 Gbps all channel), 12bit per channel (36bit all channel) deep color.

4. Automatic detection of the screen to connect and disconnect.

5. Powered from Mini DisplayPort source.

Input signal: Mini DisplayPort 1.1a

Video Output: HDMI / DVI / VGA

Input: Mini Display Port Male 20pin

Output: HDMI Female Type A 19pin

Connector: female DVI (24 + 1) female 15pin VGA

Vertical Frequency Range: 50/60 Hz

Video Amplifier Bandwidth: 2.25 Gbps / 225 MHz

HDMI / DVI / VGA 480i / 480p, 576p, 720p, 1080i / 1080 P

External power supply: no external power

Power consumption (max): 700 mW

Cable length: 8.5 cm

Package Weight: 1.9 oz / 54g

For Mac Book Air, MacBook Pro, iMac and Mac mini with Thunderbolt ports since 2011 are supported.

For Mac Book Air, MacBook Pro, iMac and Mac mini or PC with Mini DisplayPort are also supported.

For Microsoft Surface Pro 1 2 3 also supported

The product is easily and conveniently use with three output ports: HDMI VGA DVI and a Mini Display port. and you can use one at a time as your demand,

When you want to use the DVI output, simply connect the DVI device with a DVI cable. And when you want to use the HDMI output, just connect the

HDMI devices using an HDMI cable. When you want to use the VGA output, simply connected the VGA devices using a VGA cable.

You should ensure that if your Mac has one of the following two types of port: Mini DP port and port Thunderbolt
