DC-022 5.5x2.1mm DC Female Power Jack

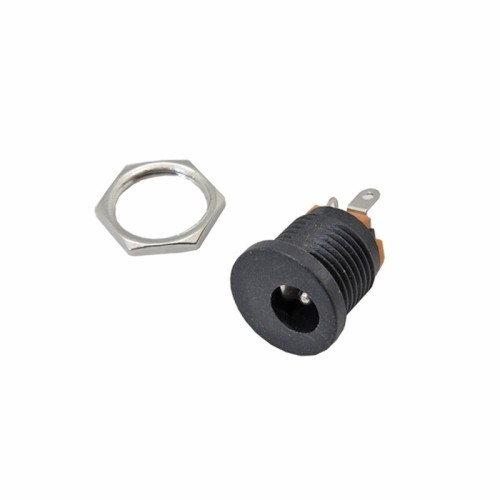

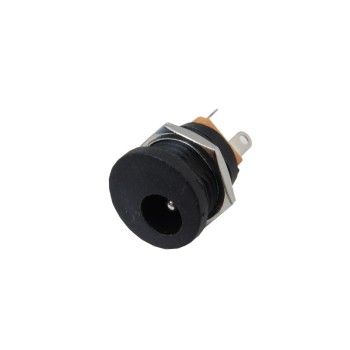

The DC-022 M 5.5×2.1 Jack Adapter is one of the most widely used and high-quality female jack adapters, designed to provide a secure and reliable input for standard male adapter plugs with precise dimensions. As its name suggests, this DC-022 Female Jack Adapter is intended for installation on panels or enclosures of various devices, and it can be easily fastened to the desired surface using the included nut. Its structure, made from a combination of plastic and metal, features 3 pins for PCB connection, ensuring a stable and safe connection.

With exact dimensions of 5.5×2.1 mm, the Female power jack serves as a perfect replacement for damaged PCB sockets of the same size. Its standard design allows for quick and easy use in electronic projects and repair tasks, providing a convenient way to connect and disconnect adapters to electronic boards as needed. The contact resistance is below 30 mΩ, while the insulation resistance exceeds 100 MΩ, ensuring a stable connection without energy loss.

The DC-022 Black Jack Adapter performs reliably in ambient temperatures ranging from -25°C to 85°C and is rated for a maximum current of 0.5 A and 30 V. One of its most important features as a PCB Mount Jack Adapter is that it enables direct and safe adapter connections to the board, with fast and secure installation that saves time and cost in electronics projects and repairs. The operational lifespan of this jack is guaranteed for up to 5,000 cycles, and its operating force ranges between 3 to 20 N, making it suitable for continuous and long-term use.

This female jack adapter is highly practical for electronics projects, robotic modules, electronic boards, and repair tools. Thanks to its high-quality construction and resistance to heat and wear, it ensures a safe and secure connection of adapters to boards and devices. Using the DC-022 M 5.5×2.1 Jack Adapter provides a standard, reliable input for male adapter plugs, protecting both the board and device from damage.

Applications of the DC-022 Jack with Nut

1. Securely connecting adapters to electronic boards for industrial and educational projects
2. Using in robotic modules to provide reliable and stable power
3. Repairing or replacing damaged female jack adapters on device panels
4. Installing on device enclosures or boxes to create a standard power input
5. Using in desktop electronic boards for easy adapter connection
6. Connecting small electronic equipment and tools with low current and voltage
7. Application in DIY projects and custom circuit building to supply power

Specifications of the DC-022 Black Jack thread type Adapter

1. Rated Voltage: 30V
2. Rated Current: 0.5A
3. Contact Resistance: < 30 mΩ
4. Insulation Resistance: > 100 MΩ
5. Number of Pins: 3
6. Dimensions: 5.5 × 2.1 mm
7. Body Material: Plastic and Metal
8. Operating Temperature: -25°C to 85°C
9. Operating Force: 3 to 20 N
10. Lifespan: 5,000 cycles
11. Mounting Type: PCB or device panel installation using nut
