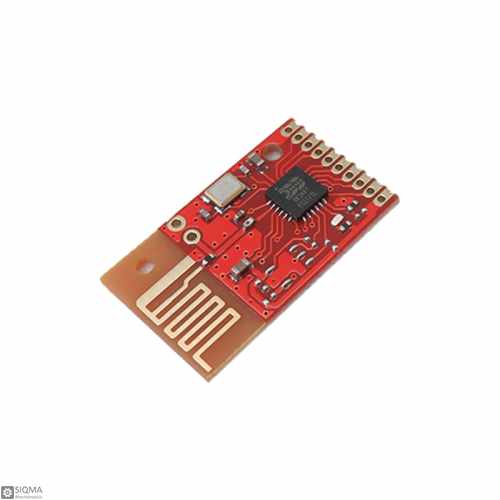

10 PCS L24YK 2.4GHz Wireless Transmitter Module

10 PCS L24YK 2.4GHz Wireless Transmitter Module
  • Product Code:SQ3512
  • Availability: In Stock
  • $9.99
  •
  • Ex Tax:$9.99
+
-


Tags: L24YK, Wireless Transceiver, Wireless Remote Control, Wireless Transmitter, 6Way Switch, Remote Switch

Description:
L24YK 2.4GHz Wireless Remote Control Transmitter Module is a remote control transmitter based on L24YK chip series. L24YK  series are switches both transmitters and receivers. These are six-way switch module with 2.4GHz frequency hopping technology.  L24YK transmitters are named L24YK-TXH and L24YK-TXL, as the same way L24YK receivers are named L24YK-REC1, L24YK-REC2, L24YK-REC3, and L24YK-REC4. The chip adopts BK2461 chip with high-processing smart RF chip. L24YK  series pass new SOC  technology, so it doesn't need  further developments. The series applies FHSS technology for transmitting radio signals. FHSS technology enables it to work in a group of transmitter and receivers without interference. An L24YK transmitter can work with multiple of L24YK receivers, as well as, one L24YK receivers can pair with multiple transmitters. In the open wide space these series can send or receive up to 120 meter distance.
This transmitter module can directly connect 6 buttons, emit in the output 6 switch signals, and can learn to set the latch non-latching. This wireless module  is a low power wireless remote control module transmitter with small size, high sensitivity and low energy consumption. It can use by official Arduino boards.

Features:
Frequency: 2.4-2.5Ghz
Standby current: 10uA
Output power: 12dBm
The line of sight: 120m
Voltage: 2.8~3.6V
Modulation method: GFSK
Input: 6-way switch
Antenna: PCB Antenna
Size: 23.3mm x 13.7mm x 2.1mm

Package Include:
10 x Wireless Transmitter Module

Wireless Parameters
Modulation GFSK
Transmit Power 12dBm
Transmit Standby current 10 UA
Electrical Parameters
Frequency 2.4GHz
Voltage 2.8~3.6V
Physical Parameters
Size 23.3mm x 13.7mm x 2.1mm
Weight 1g
