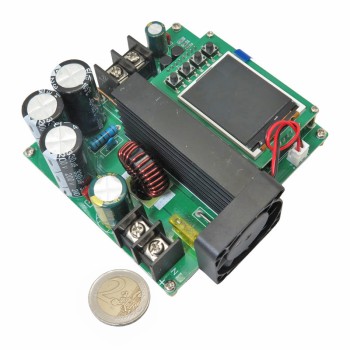

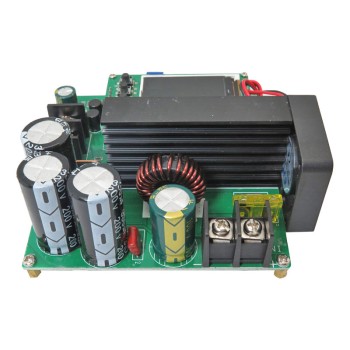

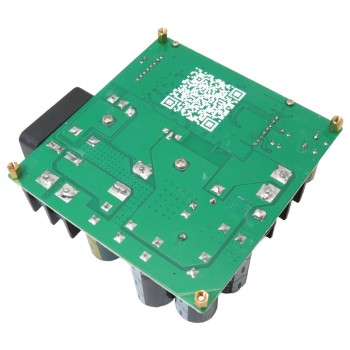

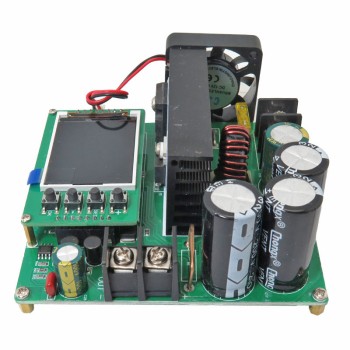

BST-900W CNC Spindle Voltage Booster Module

the Voltage Booster Module is responsible for increasing dc voltage, and the output of this module is higher than its input and has a constant value. the bst - 900w boosting module is fully digital and is used in cnc spindles. important features of this module include small size, high power, high efficiency, stability, and compatibility with high-speed microcontrollers. the display of this boosting module consists of four displays with eight leds to show voltage, current, power, capacity, and other parameters. another positive feature of this module is its ability to store set values.

1. cnc machine
2. electronics
3. and...

specifications of the CNC spindle voltage booster:

1. input voltage: 8 ~ 60 volts
2. output current: 0 ~ 15 amperes
3. output voltage: 10 ~ 120 volts
4. efficiency: 85 percent
5. operating frequency: 150 khz

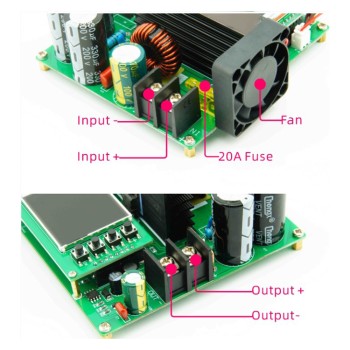

6. short circuit current protection: 20 amp fuse
7. operating temperature: -40 ~ 85 degrees celsius

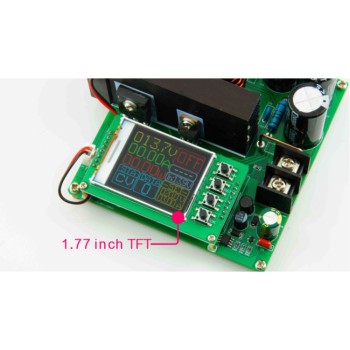

8. display for monitoring values
9. voltage regulator resolution and display resolution: 0.01 and 0.1 at 100 volts
10. current regulator resolution and display resolution: 0.01 and 0.1 at 100 amperes
11. output ripple: less than 50 millivolts
12. weight: 238 grams
13. dimensions: 40 × 100 × 110 millimeters

Documents:

datasheet 900w dc-dc cnc boost module
