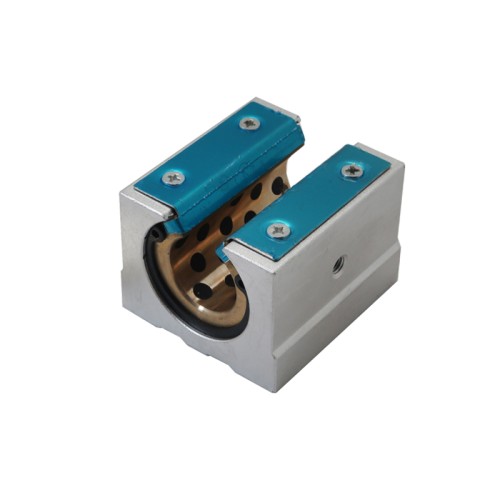

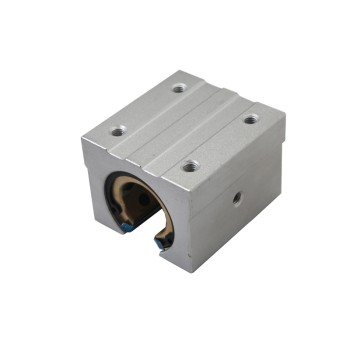

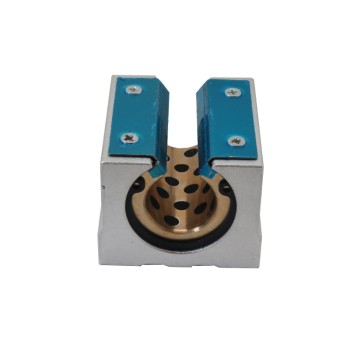

SBR25UU Linear Bearing Slider Block Unit

The SBR25UU Linear Block Bearing is made from durable aluminum, designed for use in linear motion systems where precision and strength are essential. Inside the block, a Grooved Bearing allows for smooth and stable movement along the axis.

This setup is ideal for guiding components over a Linear Shaft Bearing, which includes a supported shaft that acts as a stable rail. The Grooved Bearing design ensures firm contact with the shaft, minimizing vibration and play during motion.

The supported shaft, commonly used in high-load or high-precision applications, prevents bending and maintains alignment over long distances. It can be directly mounted to a base or frame, improving structural rigidity.

To secure the Linear Bearing inside the block, two snap rings are used, holding it firmly in position. For ease of assembly, the block includes four threaded holes, allowing quick and secure mounting to machinery or equipment.

Applications of the Slider Block Unit

1. CNC Machines
2. Industrial Equipment
3. Precision Instruments
4. Laser Systems
5. 3D Printers

Specifications of the SBR25UU Bearing

1. Model: SBR25UU
2. Inner Diameter: 25 mm
3. Material: Aluminum

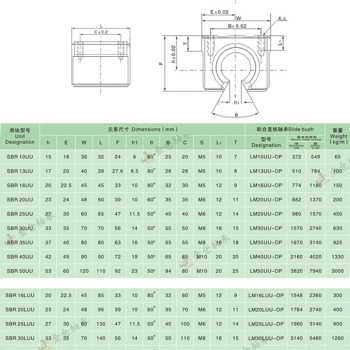

For exact measurements, please refer to the size chart included in the product images.
