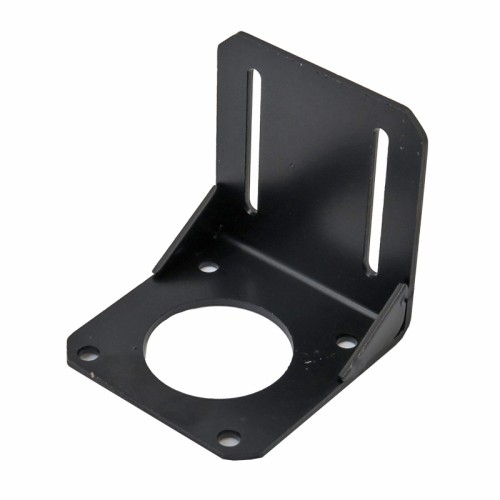

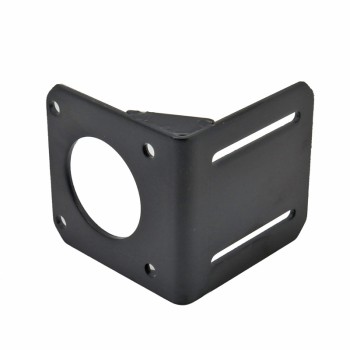

NEMA 23 Metal Stepper Motor L-Shaped Mounting Bracket, Size 57

The NEMA 23 Metal Stepper Motor Base (57 mm) is an essential component for installing and securing 57×57 mm stepper motors. This NEMA 23 Metal Stepper Motor L-Shaped Mounting Bracket, Size 57 is designed with precision and durability, providing a stable and secure mounting solution on various surfaces. It is widely used for fastening Metal Stepper Motor Bases, offering excellent strength and making it ideal for industrial and robotics projects.

Constructed from high-quality metal, this Metal Stepper Motor L-Shaped Mounting Bracket, Size 57 resists pressure and vibration effectively. By positioning the motor at a 90-degree angle, it ensures the motor remains firmly in place. The 3 mm thick bracket body guarantees long-lasting durability and robustness. Additionally, the elevated design keeps the motor at a proper distance from the mounting surface, which is especially useful for applications where airflow and cooling are important.

This Stepper Motor Mounting Bracket is fully compatible with 57 mm (NEMA 23) stepper motors. The motor flange fits perfectly into the bracket, allowing for precise and effortless installation. The standard 57 mm dimensions ensure seamless alignment with NEMA 23 motors, simplifying the assembly process.

Ideal for CNC machines, robotic systems, and industrial automation projects, this Metal Stepper Motor Base provides reliable support for stepper motors. Its L-shaped design, combined with superior construction and strength, makes it a dependable choice for anyone seeking a robust and durable Metal Stepper Motor L-Shaped Mounting Bracket, Size 57.

Applications of the NEMA 23 Metal Stepper Motor Base

1. Secure installation and mounting of stepper motors in CNC machines
2. Stable mounting of stepper motors in robotics applications
3. Use in industrial automation systems for holding stepper motors
4. Stabilization of stepper motors in precision machinery and mechanical tools

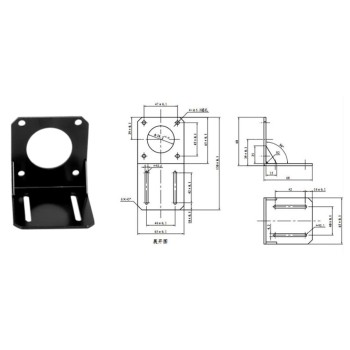

Specifications of the NEMA 23 Metal Stepper Motor Base

1. Motor flange dimensions: 57 × 57 mm
2. Bracket body thickness: 3 mm
3. Material: Durable coated metal
4. Bracket weight: Approximately 160 g (without screws and nuts)
5. Design: L-shaped with a 90° angle for vertical motor mounting
6. Motor mounting type: Four holes for M4 × 16 mm screws
7. Compatible screws and nuts: Four M4 × 16 mm screws, four M4 nuts, and four washers
8. Additional features: Two elongated slots for adjustable positioning
9. Applications: Suitable for CNC machines, 3D printers, laser machines, and robotics projects

Features of the Stepper Motor Bracket

1. Easy and quick installation of NEMA 23 stepper motors with precise design
2. High strength and resistance to vibration and pressure
3. Provides a 90° angle for vertical motor mounting
4. Elevated base design for improved motor ventilation and airflow
