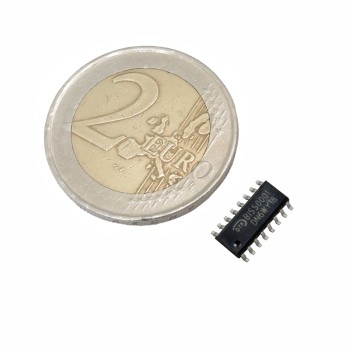

CD4069BM Inverter IC SOP14 Package

the 4069 buffer can function as both an inverter and a non-inverting buffer, and the ic with part number cd4069ubm is an inverting buffer or inverter that transmits the input voltage level in reverse at the output. the cd4069ubm inverter ic typically operates with a 5-volt supply and has 6 input and output channels. when connecting this buffer to a microcontroller or drivers, attention should be paid to the vol and voh levels to ensure the device is driven correctly, and if the speed of the buffer is important, timing parameters should also be considered.

application of CD4069BM Inverter IC SOP14 Package:

1. cmos to ttl converter
2. current sink or source driver
3. low to high voltage level converter

specifications of the CD4069UBM IC:

1. typical supply voltage: 5 volts
2. low level output voltage: less than 0.4 volts
3. maximum input voltage: 20 volts
4. dc input current per pin: 10 milliamps
5. logic voltage level converter high-to-low

Documents:

datasheet of ic 4069
