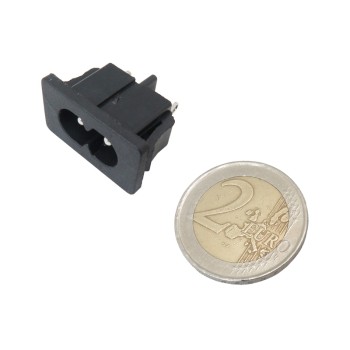

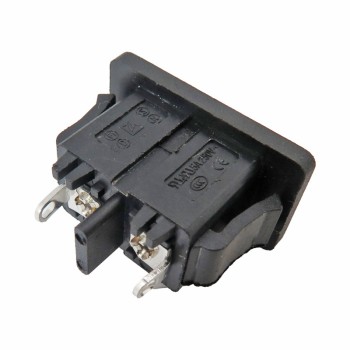

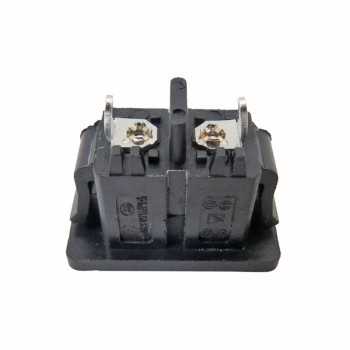

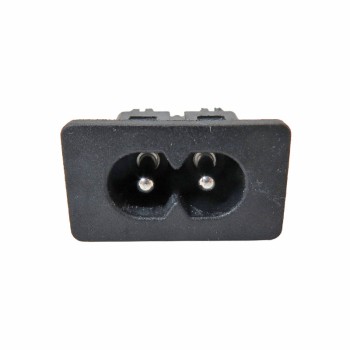

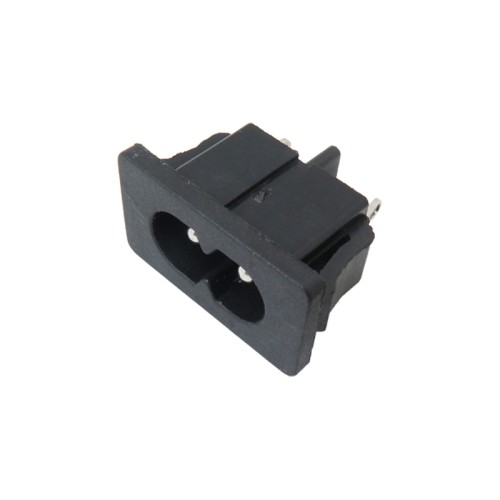

C8 Panel Mount Socket Adapter

The AC power supply socket features 2 metal pins and a sturdy panel-mount (chassis-mount) design. It can handle up to 250V input voltage and 2.5A current, making it suitable for various electronic applications.

This C8 2 pin panel adapter socket is commonly used for repairing or assembling power inputs in audio systems, video equipment, radios, and speakers. Its panel-mount form allows for secure and stable installation on enclosures or device panels.

Built with high-quality hard plastic, the 2 pin power supply socket offers enhanced durability and long service life. Its black, dual-slot design is compatible with standard two-prong power cables, ensuring a reliable and snug connection.

Applications of the C8 Panel Mount Socket Adapter

1. Electronic devices and components
2. Power adapters
3. AC power input connections

Specifications of the 2 pin power supply socket

1. Connector Type: 2 Pin C8 AC Power Socket
2. Pin Configuration: Male
3. Insulation Resistance: ≥100MΩ
4. Voltage Rating: 250V AC
5. Current Rating: 2.5A @250V / 7A @125V
6. Operating Temperature: -40℃ to +70℃
7. Number of Pins: 2
8. Durability: 5000 insertion/removal cycles
9. Mounting Style: Through-hole
10. Pin Spacing: 10mm
11. Dimensions: 29mm (L) × 16mm (W) × 18mm (H)
