BULD39D High-Voltage Transistor

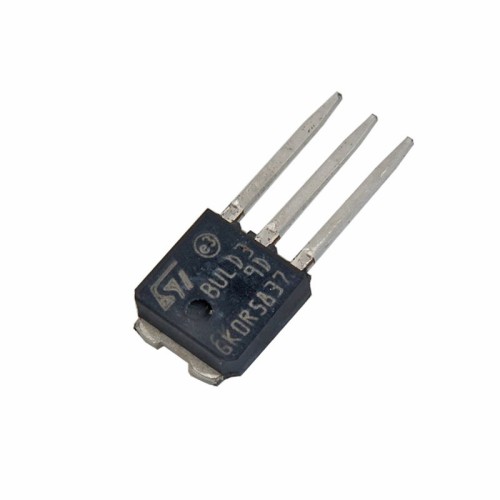

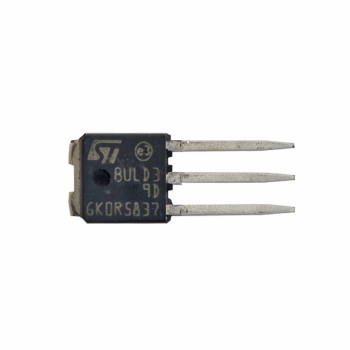

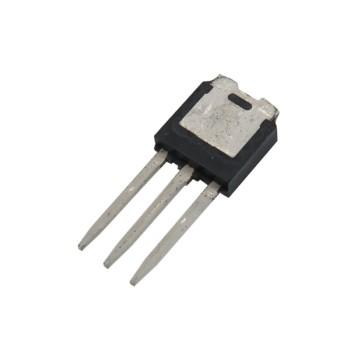

The BULD39D is a high-voltage NPN power transistor with all three terminals aligned in a single row. Designed using Multi-Epitaxial Planar technology, it enhances switching speed, making it ideal for high-frequency pplications. As part of the BUL series, the BULD39D High-Voltage Transistor is commonly used in electronic transformers and halogen lamps. This BULD39D Power Transistor comes in a TO-251 package, with terminals ordered from left to right: Base, Collector, and Emitter.

Applications of the BULD39D High-Voltage Transistor:

1. Selectronic transformers for halogen lamp
2. Switching power supplies

BULD39D Transistor Specifications

1. Collector-Emitter Voltage (VBE = 0): 850V
2. Collector-Emitter Voltage (IB = 0): 450V
3. Collector Current: 4A
4. Maximum Collector Current: 8A
5. Base Current: 2A
6. Power Dissipation at 25°C: 35W
7. Storage Temperature Range: -65 to 150°C
8. Maximum Junction Temperature: 150°C

BULD39D Transistor Specifications:

1. NPN transistor
2. High voltage capability
3. Minimum lot-to-lot spread for reliable operation
4. Very high switching speed
5. High ruggedness
6. Through-hole IPAK (TO-251) power package
7. In compliance with the 2002/93/EC European Directive

Documents:

BULD39D Transistor Datasheet
