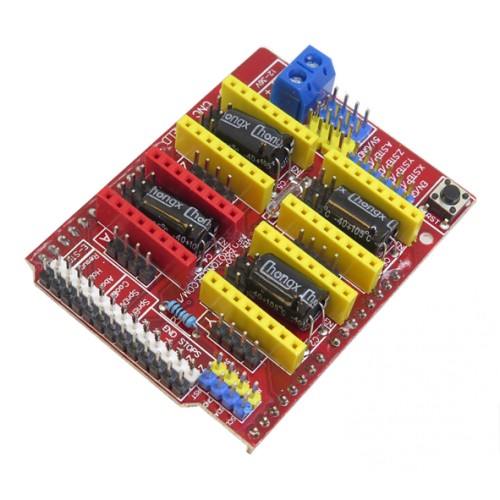

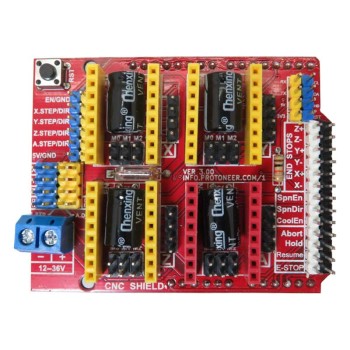

Arduino CNC Shield V3

Arduino CNC Shield V3
  • Product Code:SQ1905
  • Availability: In Stock
  • $0.95
  •
  • Ex Tax:$0.95
This product has a minimum quantity of 8
+
-


Tags: GRBL, 4Axis control Card, Arduino Shield, Arduino UNO CNC, A4988, DRV8825

Features:
GRBL 0.8c compatible.
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total)
Spindle enable and direction
Coolant enable
compatible stepper drivers:A4988, DRV8825 and others
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Package Include:
1 x Arduino CNC Shield V3

Electrical Parameters
Voltage DC 12-36V
Physical Parameters
Weight 33g
