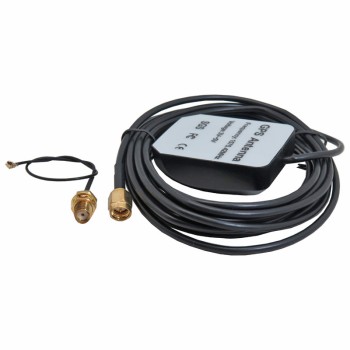

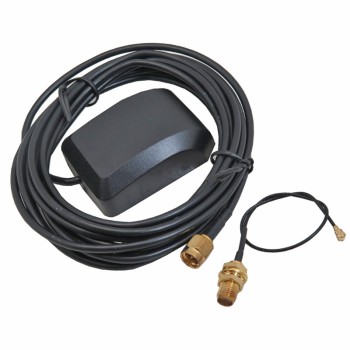

Active GPS Antenna with Male SMA Socket and IPX Conversion

A GPS antenna is a device used for receiving and expanding radio signals sent by distinct frequencies coming from GPS satellites. These antennas will convert them into electronic signals so they can be used by GPS receivers. Once the GPS receiver obtains the output from the GPS antenna, it can calculate the position accurately.

Active antennas come with powerful amplifiers that permit them to pick signals from longer distances. In fact, the signals received by these amplified antennas are much stronger than the GPS device.

This high quality GPS antenna is suitable for a whole range of applications such as in your car, drone or motorbike. This GPS antenna comes with a huge 5M long cable and is perfect to mount at a suitable spot on your vehicle. This GPS antenna features a high quality gold plated SMA male connector.

GPS antenna housing is fully waterproof so you can easily use it in the open air (e.g. fix it on the car roof). Built-in magnet allows you to install antenna without additional holders.

 GPS Antenna with IPX Conversion Application:

1. GPS system
2. Automobile
3. Bikes

GPS Antenna with IPX Conversion Specification:

1. Low noise amplifier
2. Waterproof housing
3. Low power consumption
4. Compact design
5. Excellent temperature stability
6. Magnet base mount
7. RHCP Polarisation
8. 28dB LNA Gain
9. SMA Gold Plated Connector
10. Magnetic base for easy mounting
11. Universal applications

Features:

1. DC Voltage: 3~ 5VDC
2. current: 5mA ,10mA Max
3. Connector: SMA Male
4. Size: 36 x 33 x 14mm
5. Center Frequency: 1575.42MHz±3 MHz
6. V.S.W.R: 1.5:1
7. Band Width: ±5 MHz
8. Impendence: 50 ohm
9. Peak Gain: >3dBic Based on 7×7cm ground plane
10. Gain Coverage: >-4dBic at –90°<0<+90°(over 75% Volume)
11. Polarization RHCP
12. LNA Gain (Without cable): 28dB Typical
13. Noise Figure: 1.5Db
14. Filter Out Band Attenuation (f0=1575.42 MHZ): 7dB Min f0+/-20MHZ  ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ
15. S.W.R: <2.0
