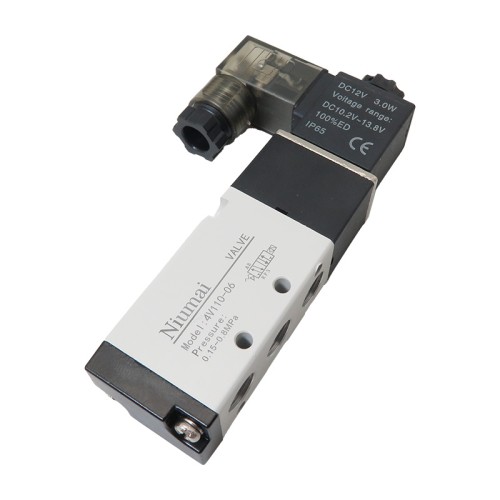

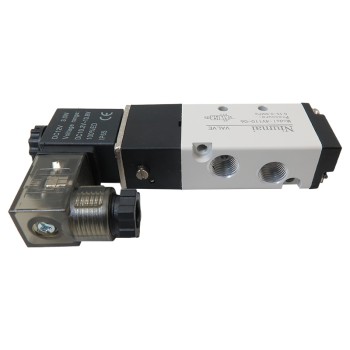

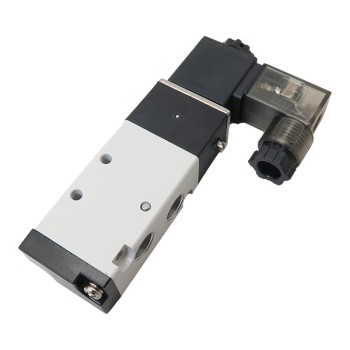

Air TAC 4V110-06 Pneumatic Solenoid Fluid Control Valve

Air TAC 4V110-06 Pneumatic Solenoid Fluid Control Valve
  • Brands Air TAC
  • Product Code:SQ6576
  • Availability: In Stock
  • $4.99
  •
  • Ex Tax:$4.99

Available Options

This product has a minimum quantity of 2
+
-


Tags: Pneumatic Connector, Quick Connection, Fluid Valve, Solenoid Valve, Control Valve

Description:
A solenoid valve is an electromechanically operated valve. Solenoid valves differ in the characteristics of the electric current they use, the strength of the magnetic field they generate, the mechanism they use to regulate the fluid, and the type and characteristics of fluid they control. A control valve is a valve used to control fluid flow by varying the size of the flow passage as directed by a signal from a controller.

Features:
Product Name: Solenoid Valve
Model: 4V110-06
Working Voltage: 12Vdc, 24Vdc, 220Vac
Power: 2.5W
Way and Position: 5 Way 2 Position
Port Size: 1/8inch (in and out)
Working field: Air
Working Pressure: 0.15MPa ~ 0.8MPa
Material: Aluminum
Operating Temperature: -20°C ~ +70°C
Frequency: 5 Cycle/Sec
Activating Time: < 0.05s

Package Include:
1 x 4V110-06 Electrical Pneumatic Solenoid Valve

Electrical Parameters
Frequency 5 Cycle/Sec
Working Voltage 12Vdc, 24Vdc, 220Vac
Power 2.5W
Switch and Valve Features
Activating Time < 0.05s
Operating Field Air
Port Size 1/8inch (in and out)
Pressure Range 0.15MPa ~ 0.8MPa
Way and Position 5 Way 2 Position
Environmental Conditions and Safety
Operating Temprature -20°C ~ +70°C
