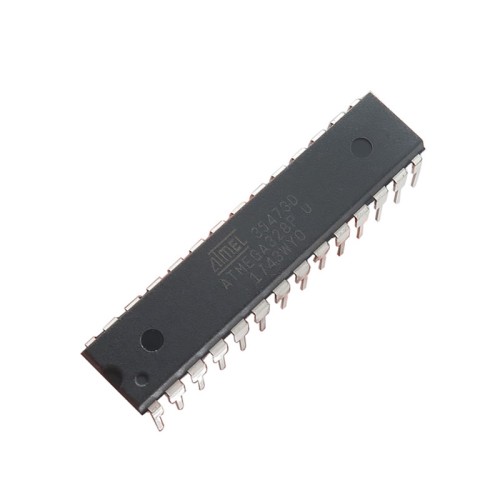

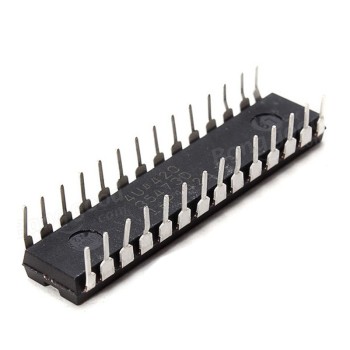

ATMEGA328PU microcontroller DIP28 package

the atmega328 microcontroller is an 8-bit microcontroller from the atmega series of atmel, which is very similar to the atmega168, but with the difference that its flash memory is twice as much, meaning it has 32 kilobytes of space for code storage and has 32 input/output lines and a processing speed of up to 20 megahertz using an external crystal. this ic is one of the low-power ics made with cmos technology and based on the avr structure with a powerful risc architecture. the operating voltage of the microcontroller is between 1.8 to 5 volts. the processor core of this ic is 8-bit and has a working frequency of 20 megahertz. this microcontroller is very economical and is used in various applications, and it can be used in the construction of arduino boards, embedded projects, robotics, and power monitoring.

applications of the atmega328 AVR microcontroller:

1. research
2. industry
3. hmi displays
4. robotics
5. education and projects

specifications of the atmega328pu microcontroller ic:

1. two 8-bit timer/counter units with separate frequency dividers and compare mode
2. one 16-bit timer/counter unit with a separate frequency divider, compare mode, and capture
3. utilization of a real-time counter with a separate oscillator
4. six pwm channels
5. utilization of a 10-bit 8-channel analog-to-digital converter (adc)
6. includes serial communication units i2c, uart, spi
7. includes a watch dog timer with a separate oscillator
8. includes an analog comparator
9. includes internal and external interrupt sources
10. includes sleep mode
11. dip-28 package
12. 32 kilobytes of flash memory
13. 1 kilobyte of eeprom memory
14. 2 kilobytes of sram memory
15. external bus interface: none
16. operating frequency: 20 mhz
17. includes 23 i/o pins
18. external interrupts: 24
19. usb module: no
20. can module: no
21. ethernet module: no

Documents:

datasheet of the atmega328pu microcontroller ic - 2016

datasheet for the atmega328pu microcontroller ic - 2009
