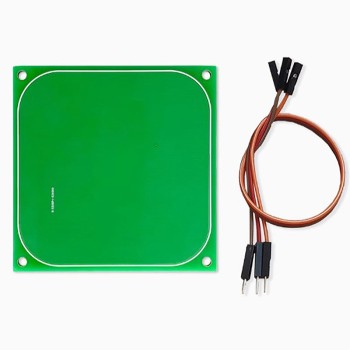

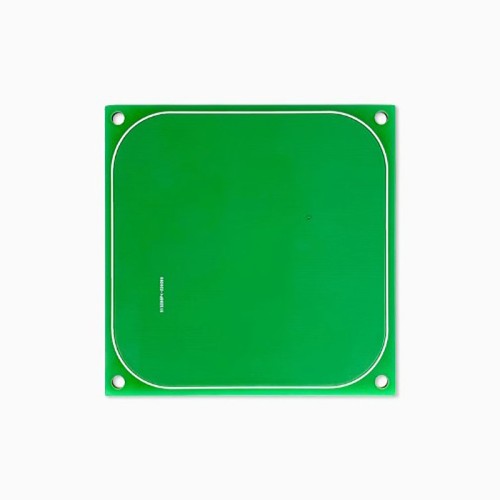

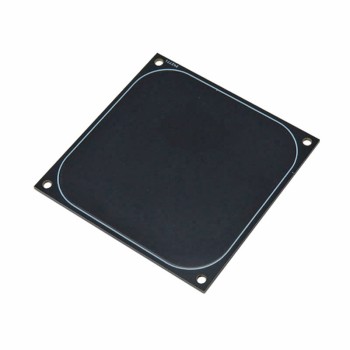

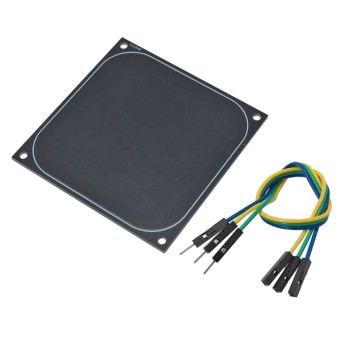

AT42QT1010 Palm Large Area Capacitive Touch Sensor Module

A Touch Sensor is an electronic device used to detect and register physical touches. Its small size, simplicity, and low cost are key features in Touch Sensor Modules. Touch sensors can replace mechanical switches, creating Switch Sensors. This Capacitive Touch Sensor uses the AT42QT1010 Capacitive Touch Sensor Module for its design. The AT42QT1010 is classified as a capacitive touch sensor and operates as a button or switch with diagnostic capabilities, as outlined in the AT42QT1010 Datasheet.

Applications of the Touch Sensor Module

1. Portable electronics like smartphones and tablets
2. Smart home devices
3. Automotive industry
4. Industrial applications

Specifications of the Touch Sensor Module

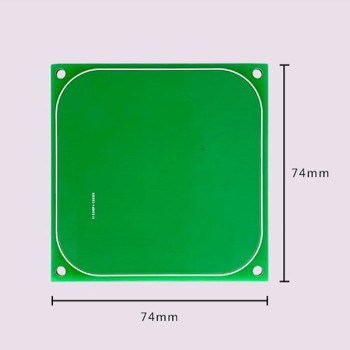

1. Dimensions: 74 * 74mm
2. Power Supply: 2.5 ~ 5.5V
3. Output: TTL
4. Ground: 0V

Documents:

AT42QT1010 Datasheet
