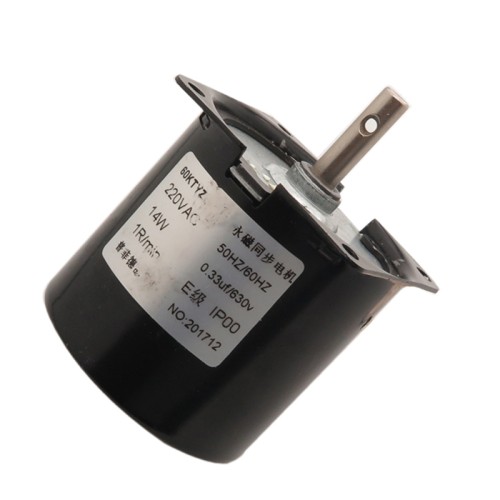

60KTYZ Synchronous Motor, 220V, 14W

*** This product is stock.

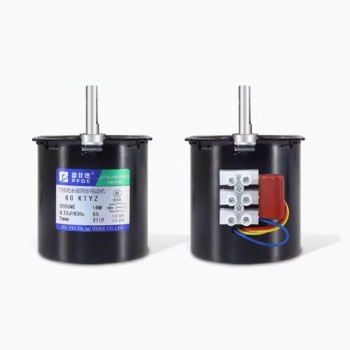

The 60KTYZ synchronous motor, single-phase, 220V, 14W, is manufactured with various speeds and features three wires and a capacitor, sharing a common neutral lead for both clockwise and counterclockwise rotation. The motor body consists of two parts: a 14W asynchronous motor in the middle section and a gear set on top that reduces speed.

The 60KTYZ synchronous motor is an AC synchronous motor with a permanent magnet rotor and built-in gearbox. Among synchronous motors, permanent magnet types offer the highest efficiency, power factor, and smallest size relative to output power.

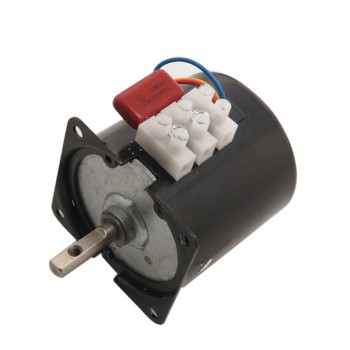

An external capacitor connected to the motor terminals creates a phase shift in the windings, ensuring the rotation direction (clockwise or counterclockwise) remains fixed regardless of power cycling. Without the capacitor, even slight mechanical force during operation can reverse the motor’s rotation direction.

Applications of the 60KTYZ Synchronous Motor, 220V, 14W

1. Automation control
2. Instrumentation
3. Glue machines
4. Stage lighting
5. Advertising and exhibition equipment
6. Sports equipment
7. Automatic curtain control
8. Various valve controls
9. barbecue
10. Incubator

Specifications of the 60KTYZ Synchronous Motor, 220V, 14W

1. Motor model: 60KTYZ
2. Voltage: 220V AC, 50/60Hz
3. Power output: 14W
4. Speed: 1 RPM
5. Torque: 90 kg·cm
6. Current consumption: 0.65A
7. Rotation direction: clockwise and counterclockwise

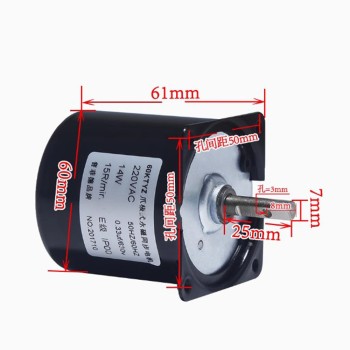

8. Central shaft with a diameter of 7mm
9. Weight: 500 grams
