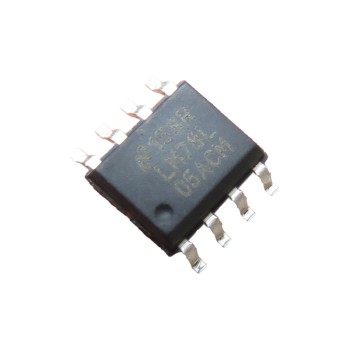

LM78L05ACM IC Regulator SOP8 Package

The IC LM78L05ACM is a fixed voltage regulator integrated circuit designed to provide a stable 5V output with a maximum current of 100mA. When the LM78L is used as a replacement for a combined zener diode/resistor, it typically results in improved output impedance and lower quiescent current.

Pins:

Input (Vin): Input voltage pin to which the unregulated input voltage is applied.
Ground (GND): Common ground pin.
Output (Vout): Regulated 5V output pin.

1. power supply for low power devices
2. power supply for microcontrollers
3. power supply for sensors

1. output voltage: 5 volts
2. output current: maximum 100 milliamps
3. input voltage range: typically 7 volts to 20 volts
4. output voltage tolerance: ± 5% in the operating temperature range
5. operating temperature range: 0 to +125 degrees celsius
6. package: sop8

Documents:

datasheet lm78l05acm sop8
