1000 PCS Micro Push Button Switch [6 x 6 x 5 mm] [4 Pin]

1000 PCS Micro Push Button Switch [6 x 6 x 5 mm] [4 Pin]
  • Product Code:SQ1140
  • Availability: In Stock
  • $2.99
  • Ex Tax:$2.99
This product has a minimum quantity of 3

Tags: Tact Switch, Push Button, Micro Switch, Tactile Switch

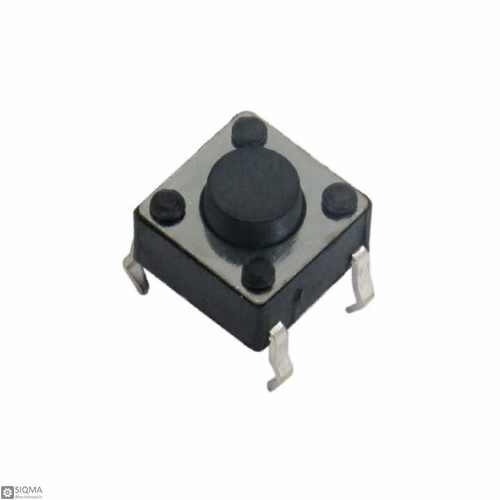

1000 PCS Micro Tactile Push Button Switch [6 x 6 x 5 mm] [4 Pin] package contain 1000 pieces of the square push-button switch with 4 copper feet pad to withstand moisture conditions. It has a compact size also, known as a micro switch. This switch is a membrane switch type and a four-pin straight horizontal button, which is operated with low pressure. Because of high-quality material, this button switch can tolerate high temperatures and reach a long-span operating. This has a low resistance in conducting mode less than 0.03Ω and a high insulation resistance more than 100 megaohms.
This tactile switch has a long-life operation, suitable for reset switch, toggle switch situation. So this switch can be used in many categories of electronic products, household or office appliances, commercial and industrial equipment, PC and digital products, and so on.

Size: 6mm x 6mm x 5mm
Pin number: 4pin
Temperature: -30°C ~ +70°C
Withstand voltage: 250VAC
Rated load: DC 12V 50mA
Contact resistance: ≤0.03Ω
Insulation resistance: ≥100MΩ

Package Include:
1000 x Micro Tactile Switch

Component Features
Pin Number 4 pin
Physical Parameters
Operating Temperature -30°C ~ +70°C
Size 6mm x 6mm x 5mm
