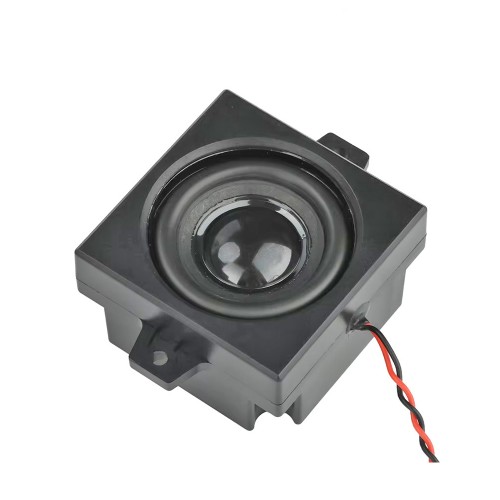

5W 8ohms 40x40mm Full Range Small Speaker

This compact 40x40mm full-range speaker delivers 5W of clear audio from an 8-ohm impedance. Designed for embedded installation in space-constrained devices, it features a small footprint (40x40x22mm) and 2-pin connector for easy integration. Built for durability, it offers dustproof, shockproof, and heat-resistant properties – ideal for remote controls, industrial equipment, model applications, and small to medium-sized devices.

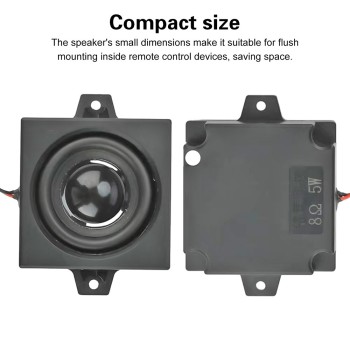

Compact Footprint, Flexible Installation

• The speaker measures just 40mm wide, 40mm deep, and 22mm thick – small enough to fit inside:
• Remote control devices – embedded inside the housing
• Handheld terminals – barcode scanners, data loggers
• Industrial control panels – audible alerts and status announcements
• Robotics – sound effects or voice feedback
• Portable instruments – multimeters, test equipment with audio output
• DIY electronics projects – Arduino or Raspberry Pi sound
• 5W Power – The Sweet Spot for Small to Medium Devices

At 5 watts, this speaker offers the ideal balance:

• Loud enough for clear audibility in normal environments
• Not overpowered – won't blow out small amplifiers
• Battery-friendly – moderate power draw extends runtime
• Versatile – works with many off-the-shelf audio amplifier modules (PAM8403, LM386, etc.)
• 8 Ohm Impedance – Industry Standard

The 8-ohm impedance is the most common rating for small speakers, ensuring compatibility with:

• Most consumer and industrial audio amplifiers
• Embedded audio driver circuits
• DIY audio modules (DFPlayer Mini, MP3 playback boards)
• Alarm and notification systems

Dustproof shockproof speaker Application:

1. Consumer Electronics: Remote controls, smart home sensors, handheld games
2. Industrial: Control panels, alarm systems, equipment status annunciators
3. Robotics: Sound effects, voice feedback, error alerts
4. Medical Devices: Audible alarms, patient alerts, user prompts
5. Automotive: Dashboard alerts, aftermarket systems
6. DIY/Maker: Arduino projects, Raspberry Pi media players, wearables

Embedded device speaker Specification:

1. Power Rating: 5W
2. Impedance: 8 Ohms
3. Type: Full range

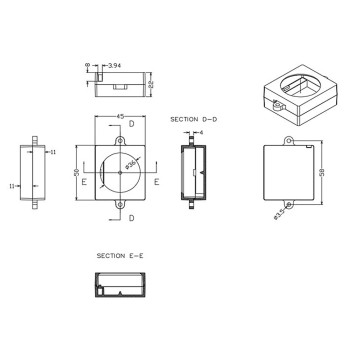

4. Dimensions: 40 × 40 × 22 mm
5. Connector: 2-pin (plug type)
6. Mounting: Embedded / flush mount
7. Durability: Dustproof, shockproof, heat-resistant

Features:

1. Compact Size: 40×40×22mm footprint fits easily into tight spaces – perfect for embedded installations inside remote controls, handheld devices, and compact electronics.
2. Moderate 5W Power: Sufficient volume for small to medium-sized equipment without excessive power consumption or battery drain.
3. Clear Audio Quality: Full-range driver delivers intelligible speech and balanced sound for notifications, alerts, and basic audio playback.
4. 8 Ohm Impedance: Standard impedance compatible with most small amplifiers, driver circuits, and audio modules.
5. Durable Construction: Designed for industrial and model equipment applications – features dustproofing, shock resistance, and heat tolerance for challenging environments.
6. Easy Integration: 2-pin connector simplifies wiring and installation.
7. Versatile Applications: Suitable for remote controls, alarm systems, embedded projects, robotics, portable devices, and industrial equipment.

Integration Tips:

• Amplifier matching: Use an amplifier rated for 8-ohm loads. Many small amp modules (PAM8403, LM4863) work well.
• Enclosure mounting: For best bass response, mount the speaker with a sealed rear chamber or at least some back volume.
• Wiring: The 2-pin connector simplifies assembly. Observe polarity for correct phase (though not critical for basic alerts).
• Volume setting: At 5W, this speaker can be loud. Test at lower volumes first to avoid distortion or discomfort.
• Protection: Even though it's dustproof, avoid direct exposure to liquids or extreme particulate.
