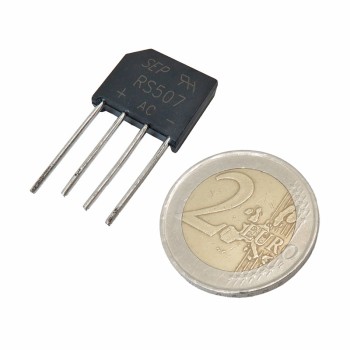

rs507 5A diode bridge

rs507 5A diode bridge
Click image for Gallery
  • Product Code:SQ11437
  • Availability: 1000
  • $0.50
  •
  • Ex Tax:$0.50
This product has a minimum quantity of 10
+
-

0 reviews / Write a review

Tags: rectifier, power supply, 5A flat diode bridge, square diode bridge

The RS507 rectifier is a 5A diode bridge and is a type of RS507 square diode bridge that can withstand up to 1000 volts in reverse voltage mode and is used in power supplies. This rectifier bridge has 4 dip .pins in a row and for this reason it is called a comb diode bridge
The RS507 5-amp flat diode bridge, like other diode bridges, is made of 4 rectifier diodes in a pack, which are used in power supplies to rectify the input alternating voltage. A diode bridge or rectifier is a circuit that is used to rectify alternating voltage and convert AC voltage to DC. A diode bridge does not change its output polarity by changing the polarity of its input supply. A diode bridge usually consists of one, two or four semiconductors of an uncontrollable rectifier such as a diode or a controllable rectifier such as a thyristor

application of rs507 square diode bridge:

  1. power supplies
  2. switching circuits

specifications of the rs507 5A diode bridge:

  1. model: kbu510
  2. reverse voltage: up to 1000 volts
  3. direct current: 5 amps
  4. packaging type: dip
  5. has 4 pins

Documents:

data sheet for rs507 5A diode bridge
