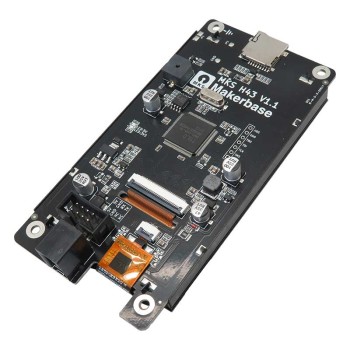

MKS H43 4.3-Inch Color Display and 3D Printer Controller

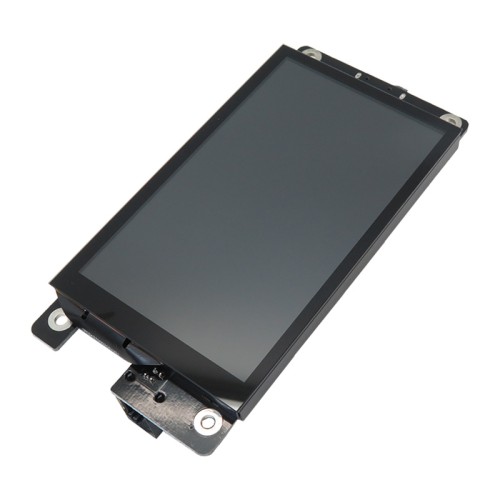

The MKS H43 Display Module is a 4.3-inch color LCD touchscreen equipped with a capacitive panel and a resolution of 400 × 800 pixels.

The MKS H43 4.3-Inch Color Display and 3D Printer Controller is designed for use with SKR series 3D printer mainboards and is fully compatible with firmware V2.X. This makes it a reliable choice for smooth control and monitoring of 3D printing operations.

As an advanced MKS H43 IPS LCD Module, it delivers vivid colors, sharp visuals, and responsive touch functionality, ensuring an improved user experience for 3D printer enthusiasts.

The 3D Printer Controller Display communicates via UART and RJ11 interfaces, offering stable and efficient connectivity for seamless integration with 3D printer systems.

Applications of the MKS H43 IPS LCD Module

1. 3D Printing Motherboard
2. Remote Control
3. Control and Monitoring

Specifications of the MKS H43 IPS LCD Module

1. Display Size: 4.3 inches
2. Resolution: 800 × 480 pixels
3. LCD Type: IPS
4. Touch Screen: Capacitive
5. Communication Interface: RJ11 / AUX-1 (UART TTL)
6. Supported Mainboards: MKS SGEN_L, MKS Robin Nano Series, MKS Robin E3 / E3D / E3P, Creality3D V1.1.4 (Ender3 / Ender5 raw board)
7. Compatibility: BTT SKR Series and theoretically all motherboards with serial communication running Marlin V2.X firmware
8. Communication Protocol: DWIN DGUS
