Full Color TFT Display Module With FPGA And RTC [4.3 inch] [480x272 Pixel]

Full Color TFT Display Module With FPGA And RTC [4.3 inch] [480x272 Pixel]
Click image for Gallery
  • Product Code:SQ6604
  • Availability: 1000
  • $29.60
  • Ex Tax:$29.60

Available Options


Tags: TFT Display, LCD, 4.3 inch TFT color display

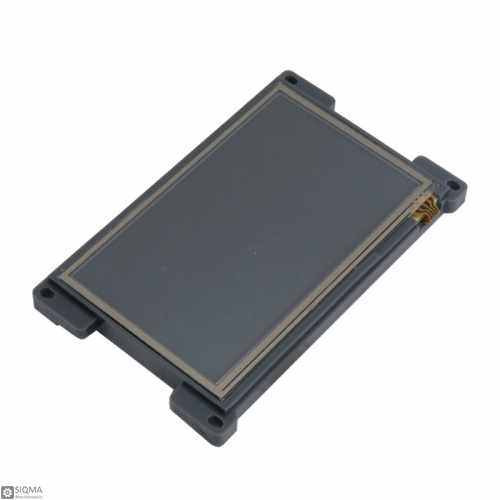

Full color 4.3inch TFT Display module with a resistive touch panel that has Cortex-M3 + dual-core FPGA and RTC.
This FPGA is a programmable logic component that can process in parallel based on internal saved instructions with high speed to fastly drive a TFT display with high resolution up to 1440x990 pixels. So the display can operate without an operating system, it can directly by power on and continuously display every time. In fact, this display is a standalone display that can work alonely for a continuous long time, too. This display is utilized for displaying a specified internal data which is processed by internal FPGA. This TFT LCD is equipped with Nandflash's data reading, SDRAM writing and RGB output beside the FPGA with same clock pulse to fast response time for refreshing the output data.

This LCD features 65K color, 16-bit RGB full color, 480x272 pixels resolution, 1Gbit configuration memory, and adjustable backlight that can be supplied with 5V up to 26V DC, 256mA at on backlight or 127mA at off backlight mode. Also, this LCD can communicate with other computer or development board trough the RS232/TTL interface and mini-USB port. The firmware of this screen can be refreshed or upgraded trough the SD memory. An internal 8x12, 8x16, 12x24, 16x32, and 32x64 ASCII character, 12x12, 16x16, and 24x24 GBK, 32x32 and 64x64 GB2312, and other fonts are embedded in this module, so it can support text, BMP, JPEG, WMF, PNG, and GIF image formats with configuration controls of the button controls, text controls, drop-down control, progress bar control, instrument control, curve control, slider control, select a control, icon view, animation, clock controls, and controls and other two-dimensional code. This LCD is presented with a capacitive touch screen or even without any touchscreen, too.

480x272 touch screen display module Application:

  1. Embedded system monitoring
  2. FPGA Designing

480x272 touch screen display module Features:

  1. Type: TFT
  2. Core processor: Cortex-M3, high-speed FPGA
  3. Touch Type: Resistive touch screen
  4. Input Voltage: 5V ~ 26V
  5. Color: Full Color (64K color)
  6. Screen Size: 4.3 inch
  7. Resolution: 480x272 Pixel
  8. Storage: 1GB
  9. Interface: RS232/TTL
  10. Temperature: -10°C ~ +60°C
  11. Display area: 95.4mm x 54.6mm
  12. PCB Size: 121.7mm x 74.6mm x 15.3mm

Full color 4.3inch TFT Display module Items:

  1. 1 x Full Color TFT Module

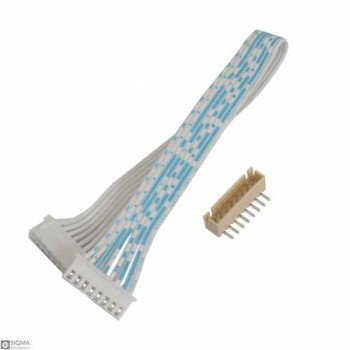

  2. 1 x Cable
Display Properties
Color Full Color (64K color)
Resolution 480x272 Pixel
Screen Size 4.3 inch (95.4mm x 54.6mm)
Type TFT
Touch Type Resistive touch screen
Interface Type RS232/TTL
Electrical Parameters
Input Voltage 5V ~ 26V
Board Parameters
CPU Cortex-M3 , high-speed FPGA
Physical Parameters
Operating Temperature -10°C ~ +60°C
Size 121.7mm x 74.6mm x 15.3mm
