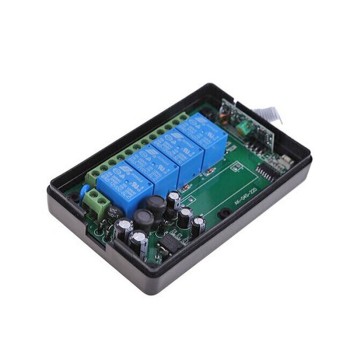

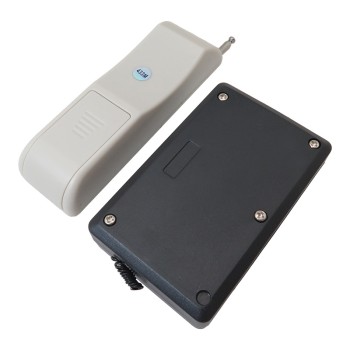

433MHz 4-Channel Remote and Receiver Kit

The 433MHz 4-Channel Remote and Receiver Kit is a versatile solution for wireless control systems operating in the 433 MHz band. This High-Range 4-Channel Remote Control offers a transmission distance of up to 1000 meters and uses a fixed code that can be paired with relay receiver modules. The 4-Channel Remote Control is compatible with multiple devices and provides reliable communication.

The 4-Channel Radio Transmitter and Receiver Kit supports three operational modes for relay control: momentary, toggle, and latching. Depending on the selected mode, each relay can either respond to button press duration or switch on/off with separate presses. This setup is ideal for automation systems.

The 433MHz 4-Channel Remote is energy-efficient and ensures stable performance in demanding environments.

Applications of the 433MHz 4-Channel Remote

1. Automated garage door systems
2. Access control for entrance and exit gates
3. Residential security and alarm systems
4. Industrial automation and remote-control equipment

Specifications of the 433MHz 4-Channel Remote

1. Model: KGS-A50-3
2. Operating Voltage: 85 ~ 260V AC
3. Operating Frequency: 433 MHz
4. Load Capacity: Up to 10A at 250V AC
5. Coding Method: Learning code (code-learn)
6. Signal Reception Sensitivity: Better than -105 dBm
7. Dimensions: 22 × 60 × 99 mm
