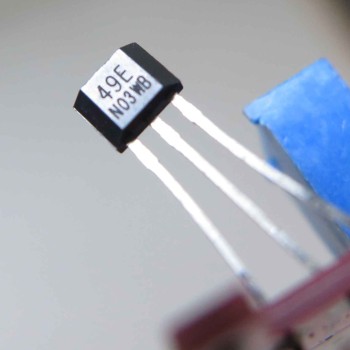

49E Hall Effect Sensor Module

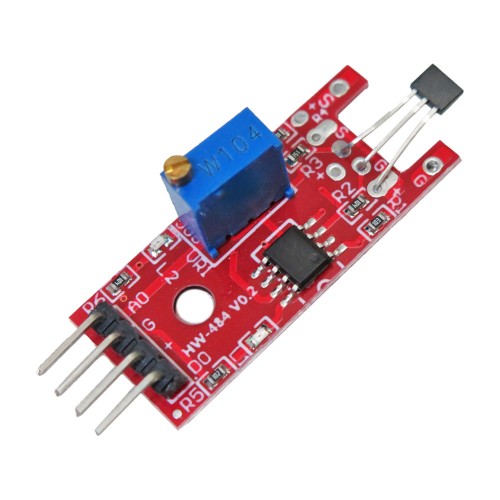

The KY-24 Hall Effect Sensor Module is a compact and versatile Linear Hall Effect Sensor Module that is activated by a magnetic field from a permanent magnet or an electromagnetic source. Its output voltage is regulated by the supply voltage and varies according to the strength of the magnetic field. The integrated circuit provides low-noise output, eliminating the need for additional external filters. Precise resistors within the module enhance temperature stability and measurement accuracy. The operating temperature range of these linear Hall sensors is -40 to 85°C, making them suitable for both commercial and industrial applications.

This Hall Effect Sensor Module features both analog (AO) and digital (DO) outputs. It includes a potentiometer to adjust sensor sensitivity and a built-in microcontroller for signal processing. The module is compatible with Arduino, ESP32, STM32, and other microcontroller boards.

Module Pins:

• VCC: Power supply (typically 3.3V or 5V)
• GND: Ground
• AO (Analog Output): Analog signal proportional to the magnetic field strength
• DO (Digital Output): Digital signal that changes state when the magnetic field exceeds a set threshold (adjustable)

This KY-24 Hall Effect Sensor Module offers a reliable, compact solution for detecting magnetic fields, providing both high precision and ease of integration for various electronic projects.

Applications of the 49E Hall Effect Sensor Module

1. Detecting magnets and measuring magnetic fields
2. Counting motor revolutions and monitoring rotational speed
3. Measuring current in wires for specific Hall effect sensors
4. Implementing contactless switches and protection systems
5. Metal detection
6. Monitoring liquid vibration, weight, position, and flow

Specifications of the Linear Hall Effect Module

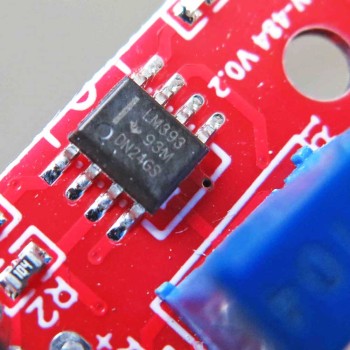

1. Chip: LM393 (wide-range voltage comparator)
2. Sensitivity: 1.0 mV/G
3. Operating Voltage: 2.3 – 5 V
4. Output: Single signal, effective for low-level detection
