10 PCS 10A 3.3V relay module

10 PCS 10A 3.3V relay module
Click image for Gallery
  • Product Code:SQ3066
  • Availability: 10000
  • $11.80
  •
  • Ex Tax:$11.80
+
-


Tags: Single Channel Relay, 10A Relay, 3V Relay

Description:

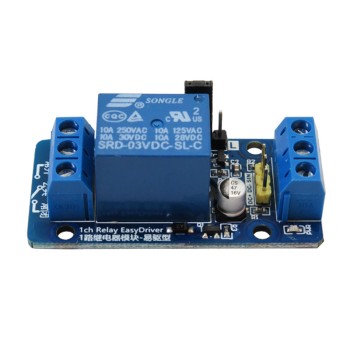

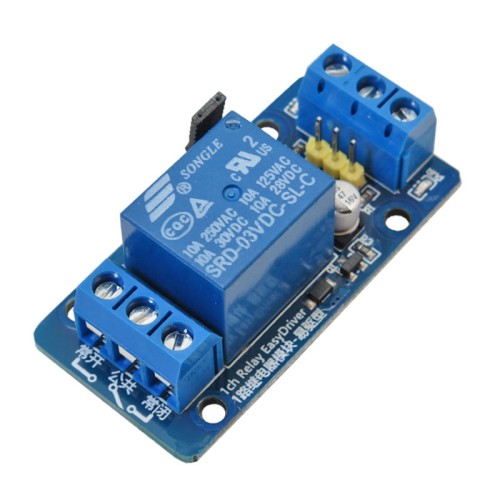

The Single Channel Relay Module is a convenient board which can be used to control high voltage, high current load such as motor, solenoid valves, lamps and AC load. It is designed to interface with microcontroller such as Arduino, PIC and etc.

Single channel Relay Module Application:

  1. motor
  2. solenoid valves
  3. AC loads

3.3v single channel relay Features:

  1. Control Voltage: 3V ~ 4V
  2. Working Current: 120mA
  3. Low level trigger voltage range: DC 0 ~ 2.3V
  4. High level trigger voltage range: DC 0.7 ~5V
  5. Trigger current: 0.5mA
  6. Output Voltage: 250Vac , 30VDC
  7. Output Current: 10A
  8. the trigger signal: high and low level signals
  9. Installation: 3mm

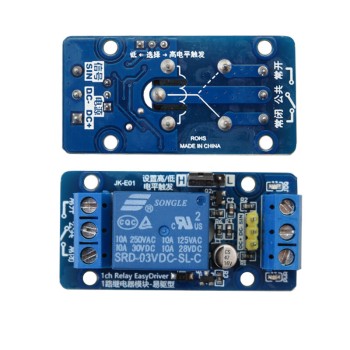

  10. Relay outputs:
           NO: normally open relay interface
           COM: Common Interface Relays
           NC: normally closed relay interface

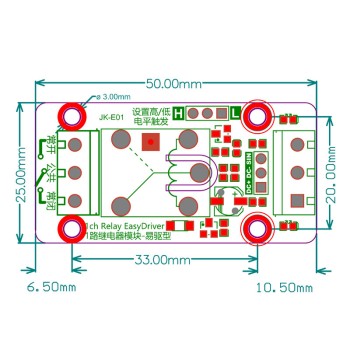

  11. Size: 50mm x 24mm x 17mm

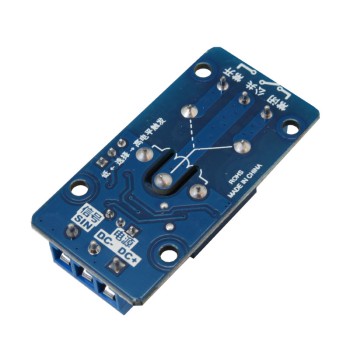

    Module interface:
    DC+: positive power supply (VCC)
    DC-: negative power supply (GND)
    IN: can be high or low-level control relay

Documents:

  1. Arduino one channel relay module Link

Package Include:
10 x 3.3V Single Channel Relay Module

Electrical Parameters
Channels Single Channel
Output Current 10A
Output Voltage 250Vac , 30VDC
Working Current 120mA
Control Voltage 3V ~ 4V
Trigger Current 0.5mA
Trigger Voltage 0 ~ 2.3V (Low Level) , 0.7 ~5V (High Level)
Physical Parameters
Size 50mm x 24mm x 17mm
