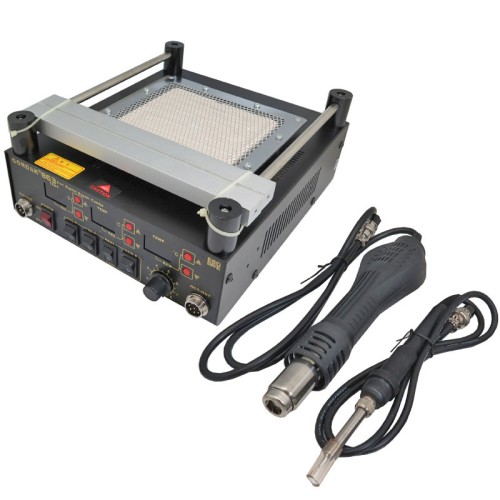

GORDAK 863 Triple Heater
Click image for Gallery
Description:
Pre-heater is one of the most important and widely used tools in the repair of printed circuit boards, especially delicate and sensitive boards such as mobile boards. By creating high and uniform heat, pre-heaters separate adhesive parts such as ICs, CPU, phone frames, and new boards like iPhones for replacement or repair. Cell phones are very vulnerable and sensitive. For this reason, pre-heaters are used to separate the frame and parts connected to the mobile phone board.
GORDAK 863 three-function pre-heater with three functional and basic parts: heater, soldering iron and infrared pre-heater part is one of the most attractive soldering and soldering tools and is known as a compact and desktop device.
Digital display of temperature values, value control buttons, connectors for connecting the soldering handle, presence of preheater metal plate and preheater cooling capability are among the positive features of GORDAK 863 desktop preheater.
Application:
Phone repairing
Reworking
Soldering
Features:
Hot air parameters:
Rated voltage: AC 220V 50HZ
Maximum power consumption: 450W
Type: brushless fan, gentle wind
Air flow: 120L / min (max)
Temperature range: 100 degrees Celsius -500 degrees Celsius
Handle assembly length: 120CM
Noise: 45db
Soldering station parameters:
Output voltage: AC 24V
Maximum power consumption: 50W
Temperature range: 100 degrees Celsius -500 degrees Celsius
Earth potential: 2 mV less
Earth impedance: 2 Ohms less
Heating element: ceramic heating element
Heating power: 50W
Preheater parameters:
Maximum power: 605W
Fever type: far infrared heating plate
Temperature range: 100 degrees Celsius -500 degrees Celsius
Dimensions: 221 × 251 × 112 mm
