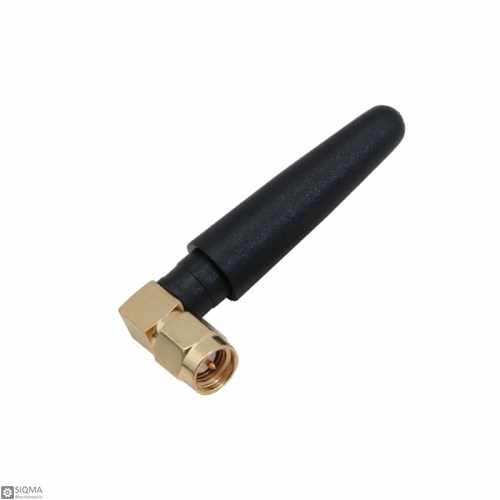

10 PCS Male GSM GPRS Right Angle SMA Antenna [3dBi]

10 PCS Male GSM GPRS Right Angle SMA Antenna [3dBi]
  • Product Code:SQ9857
  • Availability: In Stock
  • $3.90
  •
  • Ex Tax:$3.90
This product has a minimum quantity of 2
+
-


Tags: GPRS Antenna, GSM Antenna, SMA Antenna, SMA, GPRS, Antenna, Omnidirectional Antenna

Description:
It is a coaxial sleeve design with an Omni-directional pattern.
This antenna was also designed to transmit on the 900mhz frequencies. It works for current Mobile Communication.
Highly optimal design for direct mounting, this STUB avoids a Coaxial cable by mounting the antenna directly to the SMA connector. This results in low losses due to the reduced interconnects and forms a tidy and convenient antenna solution.
This antenna features a Straight SMA Connector, allowing them to be used vertically, at a right angle. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA connectors such as mobile, wireless payphone, fixed commercial phone, PCMCIA card, a navigation device, vehicle wireless device, etc.
High-quality glue stick antenna, reduced signal attenuation, strong anti-interference, small frequency deviation, high signal quality.
GSM/GPRS antennas are mainly applied to the Indoor signal coverage system, Security system, Wireless data collection system, Wireless electric power communication, and Wireless public payphone system, etc.

Features:
Frequency Range: 824MHz ~ 960MHz, 1710MHz ~ 1990MHz
Connector Type: SMA Male Gold Plating
Gain: 3dBi
Polarization: Vertical
VSWR: ≤1.6 (SMA)
Output impedance: 50Ω
Length: 50mm

Package Include:
10 x Male GSM  GPRS Right Angle SMA Antenna

Antenna Features
Gain 3dBi
Impedance 50Ω (Output)
Polarization Vertical
Antenna Frequency 824MHz ~ 960MHz, 1710MHz ~ 1990MHz
Connector SMA Male Gold Plating
VSWR ≤1.6 (SMA)
Size 50mm
