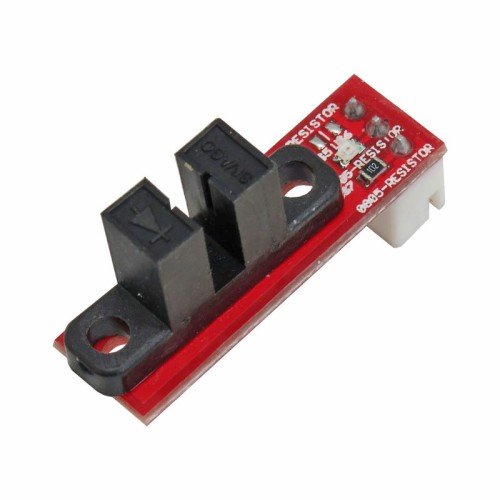

5 PCS 3D Printer Optical Endstop

5 PCS 3D Printer Optical Endstop
  • Product Code:SQ2220
  • Availability: In Stock
  • $2.40
  •
  • Ex Tax:$2.40
This product has a minimum quantity of 3
+
-


Tags: Optical Endstop, 3D Printer Endstop, Ramps Endstop, Limit Switch, Endstop Switch

Description:
5 PCS 3D Printer Optical Endstop Light Limit Switch Module For RepRap RAMPS 1.4 package contains 5 pieces of a limit switch, which is used to detect the end of head print motion for preventing touch the heat bed. Endstops switch or limit switches are applied on each moving axis of a 3D printer or CNC machines. The end-stop switch provides a reference system for the axis system and safety for 3D printers and CNC machines. After powering on the 3D printer and CNC machine, the controller unite don't know that its axis is at which position. The end-stop switches can detect the offset point for the controller unit. Also, the end-stop switch is a limiter, that can eliminate the out of limit motion to protect the system from physical damage due to incidence.
This module is a light limiter switch and acts based on light emission, named optical switch too, that is reliable and easy to install. This optical switch is specialized for the 3D Printer RepRap RAMPS 1.4, but it can be utilized for any type of 3D printer, CNC machine, and any 3D tools.

Features:
Size:33.02 x 10mm
Cable Length: 70cm
Cable Wire : 22AWG
Cable Current: 2A
Cable Voltage: 300V
Cable Temperature range: 80°

Package Included:
1 x Endstop Module
1 x 3PIN Cable

WIRE
Wire Standard 22AWG
Driver Parameters
Drived Current 2A
Drived Voltage 300V
Electrical Parameters
Operating Voltage TTL
Physical Parameters
Size 33mm x 10mm
Weight 8 g
