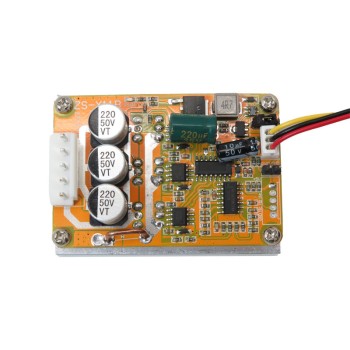

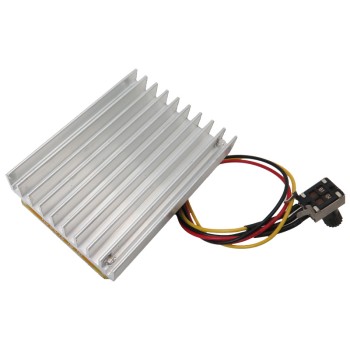

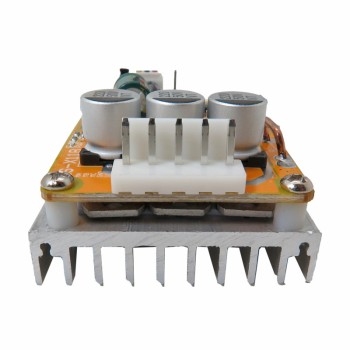

24V 350W Brushless Motor Controller ZS-X11B

24V 350W Brushless Motor Controller ZS-X11B
Click image for Gallery
  • Product Code:SQ11794
  • Availability: 1000
  • $8.90
  •
  • Ex Tax:$8.90
+
-

0 reviews / Write a review

Tags: brushless motor, bldc motor, 350w zs-x11b

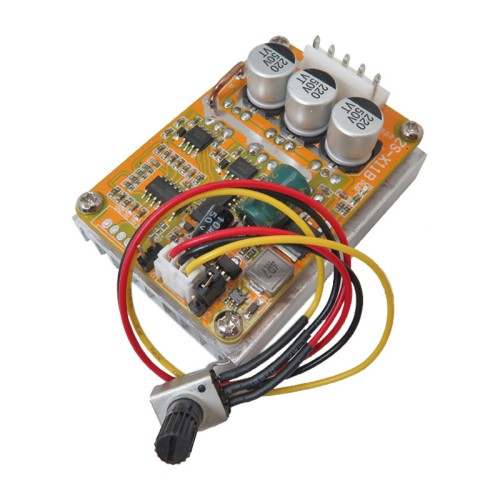

BLDC motor driver model 350W ZS-X11B is a Hall-free controller that operates at 24V and is protected against overvoltage. On this driver, there is a potentiometer with which the motor speed can be controlled and, like other controllers, it does not require a separate board and the power of this driver is 350W
This controller connects to three-phase motors through three ports MA MB MC and outputs signals through the SC pin. Two power pins VCC and GND are also located next to the other ports

application of 350W brushless motor controller:

  1. fan duct
  2. water pump
  3. air pump
  4. oil pump

specifications of the 24V Brushless Motor Controller:

  1. model: x30a
  2. voltage: 7 to 24 volts
  3. power: 350 watts
  4. startup current: 15a
  5. maximum speed: 224000 rpm (2 pole motor), 74000 rpm (6 pole motor), 40000 rpm (12 pole motor), 35000 rpm (14 pole motor)
  6. dimensions: 12*26*45 millimeters
  7. weight: 29 grams
