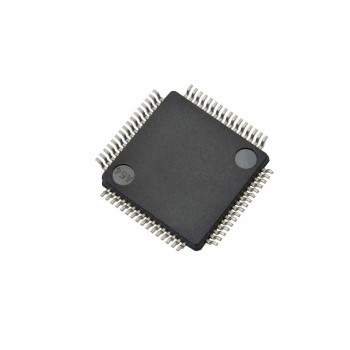

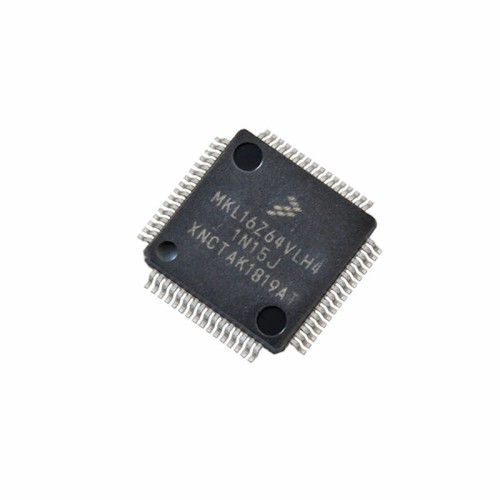

MKL16Z64VLH4 microcontroller IC 32-bit

The MKL16Z64VLH4 IC is one of the processor ICs with ARM architecture, featuring a Cortex-M0 core that operates at 32-bit with a frequency of 48 MHz, making it highly efficient for low-energy applications. This microcontroller IC, with its 32 KB flash memory, offers significant advantages in scenarios that require data transmission and storage. The energy-saving architecture of the MKL16Z64VLH4 microcontroller enables its use in applications where energy consumption is critical. The packaging of this IC follows the LQFP standard with 64 SMD installation pins, giving it a suitable appearance and compact size.

Application of MKL16Z64VLH4 Microcontroller IC:

1. DIY projects
2. Environmental control
3. Robotics

Specifications of MKL16Z64VLH4 IC:

1. Packaging: LQFP
2. Type of connections: Tin
3. Mounting type: Surface mount
4. Number of pins: 64
5. Core architecture: ARM
6. Frequency: 48 MHz
7. Communication protocol: I2C, LIN, SPI, UART, USART
8. Maximum supply voltage: 3.6 volts
9. Memory size: 64 kilobytes
10. Memory type: Flash
11. Minimum operating temperature: -40 degrees Celsius
12. Minimum supply voltage: 1.7 volts
13. Number of analog-to-digital converter channels: 1
14. Number of I2C channels: 2
15. Number of input and output pins: 54
16. Number of SPI channels: 2
17. Number of counters: 2
18. Has internal oscillator
19. Watchdog timer: Yes
20. Communication ports: Brown-out Detect/Reset, DMA, I2C, LVD, POR, PWM, WDT

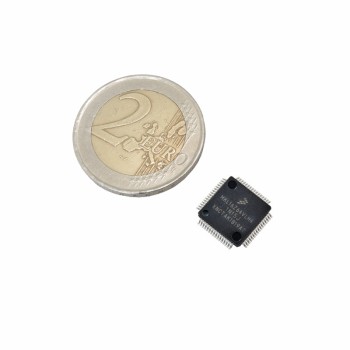

21. Dimensions: 2.4 * 14 * 14mm

Documents:

Datasheet 32Bit-MKL16Z64VLH4
