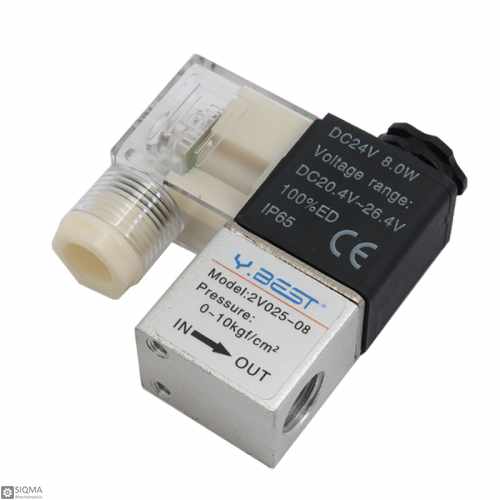

Air TAC 2V025-08 Pneumatic Solenoid Fluid Control Valve [24V]

Air TAC 2V025-08 Pneumatic Solenoid Fluid Control Valve [24V]
  • Brands Air TAC
  • Product Code:SQ6574
  • Availability: In Stock
  • $2.90
  •
  • Ex Tax:$2.90
This product has a minimum quantity of 3
+
-


Tags: Pneumatic Connector, Quick Connection, Fluid Valve, Solenoid Valve, Pneumatic, Control Valve

Description:
A solenoid valve is an electromechanically operated valve. Solenoid valves differ in the characteristics of the electric current they use, the strength of the magnetic field they generate, the mechanism they use to regulate the fluid, and the type and characteristics of fluid they control. A control valve is a valve used to control fluid flow by varying the size of the flow passage as directed by a signal from a controller.
This is a direct-acting and normally Close type 2/2 way solenoid valve. Its high sensitivity allows it to change direction quickly. The structure is small and compact.
The valve body is made of brass which is heat resistance and coil conforms to class B classification. The seals are made of Fluorine rubber (VITON) which is suitable for several types of the working medium.

Features:
Model: 2V025-08
Way and Position: 2 Position 2 Way
Operation Type: Direct Action
Working voltage: 24V
Power: 4.8W
Operating Field: Air, Water, Oil
Pressure Range: 0 ~ 10Kgf/cm2
Port Size: 1/4 inch
Activating Time: <0.05s
Body Material: Brass with zinc plated
Seal Material: VITON
Protect Class: IP65
Total Size: 59mm x 22mm x 67mm

Package Include:
1 x 2V025-08 Electrical Pneumatic Solenoid Valve

Electrical Parameters
Working Voltage 24V
Power 4.8W
Switch and Valve Features
Activating Time <0.05s
Operating Field Air, Water, Oil
Port Size 1/4 inch
Pressure Range 0 ~ 10Kgf/cm2
Type Direct Action
Way and Position 2 Position 2 Way
Physical Parameters
Size 59mm x 22mm x 67mm
Material Brass with zinc plated (Body), VITON (Seal)
