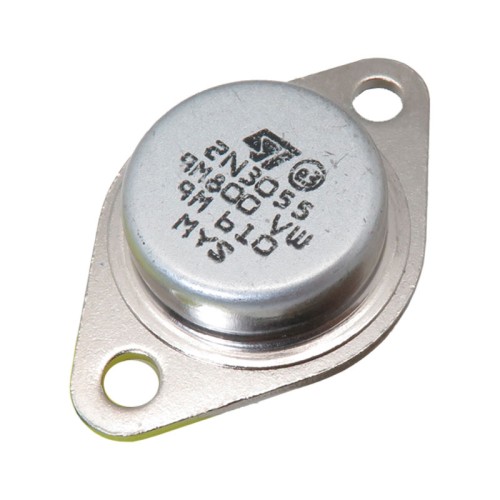

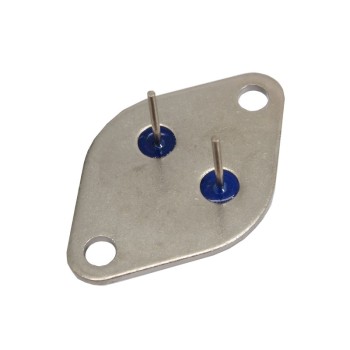

2N3055 Industrial Power Transistor

The N30552 power transistor is a metal-look NPN power transistor, a so-called pot transistor, that can handle up to 100V and 15A. It is suitable for use in general amplifiers, audio, linear and switching applications; and can be used as one half of a push-pull output with its complementary PNP transistor.

It mainly used in power switch circuits, series and parallel regulators. The maximum collector current is 15A, maximum power 115W, maximum breakdown voltage between collector and emitter is 100V.

Application of pot transistors:

1. audio modules
2. linear transistors
3. switching circuits

Specifications of Industrial transistor:

1. mounting type: dip
2. package: to-3
3. type: industrial
4. transistor type: npn
5. collector cut-off current: 700 microamperes
6. dc current gain: 20
7. operating temperature: 200 degrees celsius
8. maximum emitter-collector voltage: 60 volts dc
9. maximum collector current: 15 amperes dc
10. maximum base-emitter voltage: 7 volts dc
11. maximum base current: 7 amperes
12. maximum collector-base voltage: 100 volts dc
13. operating current range: -65 to 200 degrees celsius
14. power dissipation: 115 watts
15. type of operation: complementary bjt power transistor
