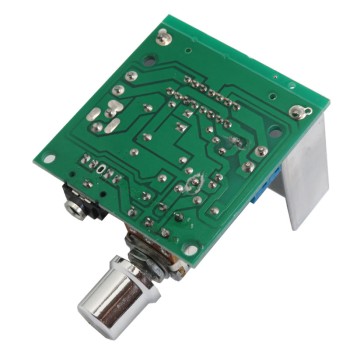

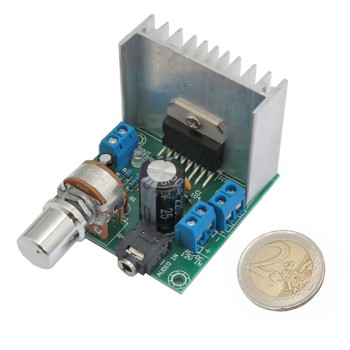

TDA7297 Stereo Amplifier Module
Click image for Gallery
- Product Code:SQ11434
- Availability: 1000
- $2.20
- Ex Tax:$2.20
the amplifier is one of the popular and widely used modules in audio equipment that can be easily set up and used, and it has different outputs. the tda7297 stereo amplifier module has two 15-watt outputs and a volume control in stereo output, and it can operate with a 12-volt dc voltage. using and connecting this amplifier module is very simple and easy due to the module being equipped with screw connectors. the dimensions of the tda7297 stereo amplifier are small, measuring 50 by 50 by 42 millimeters without considering the volume, and the small size of the module allows it to fit into various audio devices.
application of the TDA7297 15W amplifier module:
- audio equipment
- portable devices
- announcement playback
- construction of audio pagers for banks
specifications of the TDA7297 2x15W Stereo Amplifier Module:
- input voltage: 9 to 15 volts
- suggested input voltage: 12 volts dc
- current above 2 amps
- output impedance: 4 to 8 ohms
- power per output: 15 watts
- equipped with volume control
- weight: 44 grams

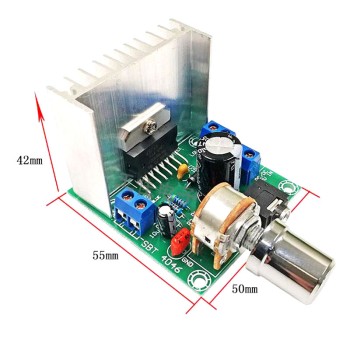

- dimensions: 50x50x42mm
- compact size
- equipped with a 3.5mm jack
- includes terminal for easy connection
