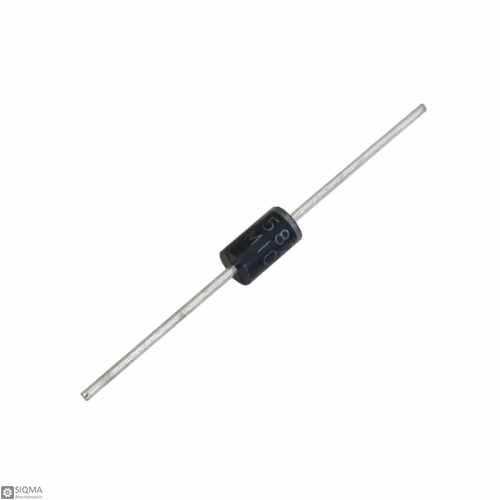

50 PCS 1N5822 Schottky Rectifier Diode [3A]

50 PCS 1N5822 Schottky Rectifier Diode [3A]
  • Product Code:SQ9957
  • Availability: In Stock
  • $1.39
  • Ex Tax:$1.39
This product has a minimum quantity of 6

Tags: Dip Diode, Rectifier Diode, High Power DiodeDip Diode, Schottky Diode, Rectifier, Diode

This series employs the Schottky Barrier principle in a large area metal-to-silicon power diode.
It is state-of-the-art geometry features chrome barrier metal including epitaxial construction with oxide passivation and metal overlap contact. It Ideally suited for use as rectifiers in low-voltage, high-frequency inverters,
free-wheeling diodes, and polarity protection diodes.
The 1N5822 Schottky diode can handle 40V @ 3A and has a low forward voltage drop.
Schottky diodes are commonly used where you want to minimize the amount of voltage drop across the diode and/or need high speed switching with decent power handling of up to 3A.
These are frequently used for reverse polarity protection, with motor driver ICs, low-voltage battery charging circuits, high-frequency inverters, and similar applications.
1N5822 are polarized devices with a band denoting the cathode end of the diode. These diodes are extremely Low VF, Low Power Loss, High Efficiency, Low Stored Charge, Majority Carrier Conduction.

Model: 1N5822
Mounting Style: Through Hole
If - Forward Current: 3A
Vrrm - Repetitive Reverse Voltage: 40V
Vf - Forward Voltage: 0.525V
Ifsm - Forward Surge Current: 80A
Ir - Reverse Current: 500uA
Operating Temperature: -65°C ~ +125°C
Package: DO-41
Pin Number: 2 Pins

Package Include:
50 x 1N5822 Schottky Diode

Component Features
Package DO-41
Pin Number 2 Pins
Diode Specifications
Forward Current 3A
Forward Surge Current 80A
Forward Voltage 0.525V
Reverse Current 500uA
Reverse Voltage 40V (Repetitive)
Environmental Conditions and Safety
Operating Temprature -65°C ~ +125°C
