10 PCS VGA DB15 Angled Connector [Female] [15 Pin]

10 PCS VGA DB15 Angled Connector [Female] [15 Pin]
Click image for Gallery
  • Product Code:SQ8542
  • Availability: 10000
  • $0.83
  • Ex Tax:$0.83
This product has a minimum quantity of 10

Tags: Female Socket, DB15 Connector, VGA Port

10 PCS VGA DB15 Angled Connector [Female] [15 Pin] package contains 10 pieces of  15pin connector, which is used for VGA devices such as monitors, graphic cards, digital TVs, video projectors, notebooks, TV boxes, and so on. This connector also known as VGA sockets is analog plugs and sockets that were widely used in earlier PCs and monitors. The shape of this socket is liked D letters, Also it is named D-sub or D-subminiature or DB connector. The DB-sub is presented with 9pins/holes, 15pins/holes, 25pins/holes, 37pins/holes, and 50pins/holes in male or female type.

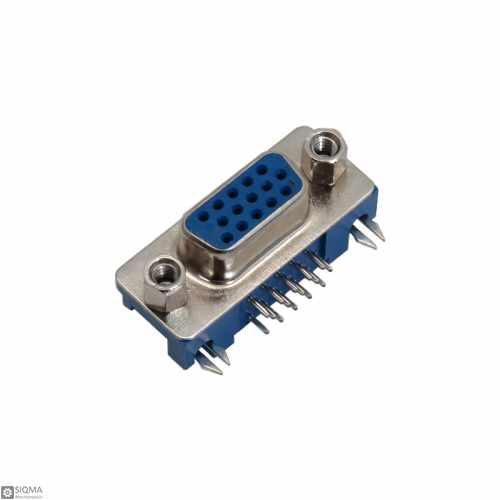

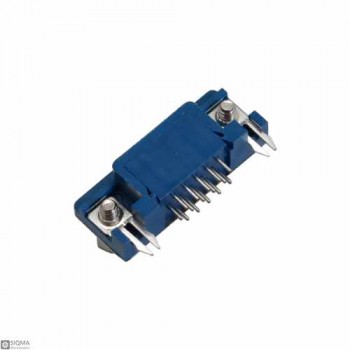

This socket is a female D-sub or DB15 hole with 3.08mm  that has 15 holes in 3 rows ended to 15 needles with 90-degree bending. The bending needles can be soldered on a PCB. This socket is equipped with 2 nuts for fastening the screw of the male match sockets, and 2 body pullback pins to fasten installed socket (female connector) on the PCB.

Model: DR15P-VGA
Socket type: female, angled
Angle: 90°
Hole Number: 15 holes
Color: Blue
Row spacing: 1.98 mm
Distance between adjacent pins: 2.29 mm
Size: 14.8mm x 30.7mm x 12.7mm

Package Include:
10 x VGA DB15 Female Socket

Connector Features
Model DR15P-VGA
Type Female , Angled
Pin Number 15 Pin
Physical Parameters
Size 14.8mm x 30.7mm x 12.7mm
Color Blue
