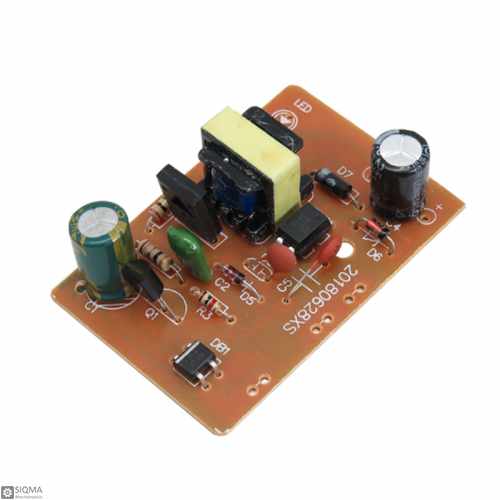

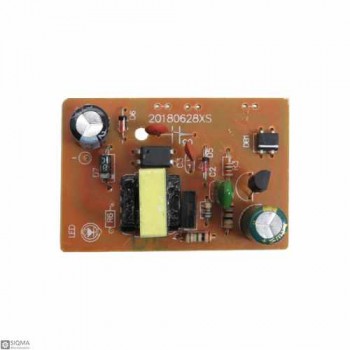

10 PCS AC-DC Switching Power Supply Module [12V] [500mA]

10 PCS AC-DC Switching Power Supply Module [12V] [500mA]
  • Product Code:SQ9965
  • Availability: In Stock
  • $2.80
  • Ex Tax:$2.80
This product has a minimum quantity of 2

Tags: Switching Power Supply, 12V Power Supply, 500mA Power Supply

A switching power supply takes an AC input, but rectifies and filters into DC first, is converted back into AC at some high switching frequency, steps down the voltage with a transformer, then is rectified and filtered into a DC output.
Switching AC-DC converters utilize a switching regulator to control the conversion of electrical power in the most efficient way possible.
While there are two main types of regulated power supplies (Switching and Linear), switching AC to DC power supplies are comparatively more reliable and efficient than linear AC to DC converters.
The main advantage of the switching power supply is greater efficiency than linear regulators because the switching transistor dissipates little power when acting as a switch.
Other advantages include smaller size, lower noise, and lighter weight from the elimination of heavy line-frequency transformers, and comparable heat generation. Standby power loss is often much less than transformers. The transformer in a switching power supply is also smaller than a traditional line frequency (50 Hz or 60 Hz depending on region) transformer, and therefore requires smaller amounts of expensive raw materials, like copper.

AC DC 12v Power Converter module Application:

  1. electrical devices
  2. power station
  3. robotics

12v 0.5A Switching power module Features:

  1. Input Voltage: 100V ~ 240V AC (50~60Hz)
  2. Output Voltage: 12V DC
  3. Output Current: 500mA
  4. Modulation Method: Pulse-width modulation
  5. Temperature Coefficient: ± 0.02%℃
  6. Start-up Time: <1s
  7. Output Ripple & Noise: 100mVp-p
  8. Output Voltage Accuracy: 95%
  9. Working Temperature: 0℃ ~ +50℃
  10. Storage Temperature: -20℃ ~ +85℃
  11. Size: 50mm x 34mm x 15mm

Package Include:
10 x 12V 500mA Switching Power Supply Module

Electrical Parameters
Input Voltage 100Vac ~ 240Vac (50~60Hz)
Output Current 500mA
Output Voltage 12V DC
Physical Parameters
Size 50mm x 34mm x 15mm​​​​​​​
Environmental Conditions and Safety
Operating Temprature 0℃ ~ +50℃
Storage temprature -20℃ ~ +85℃
