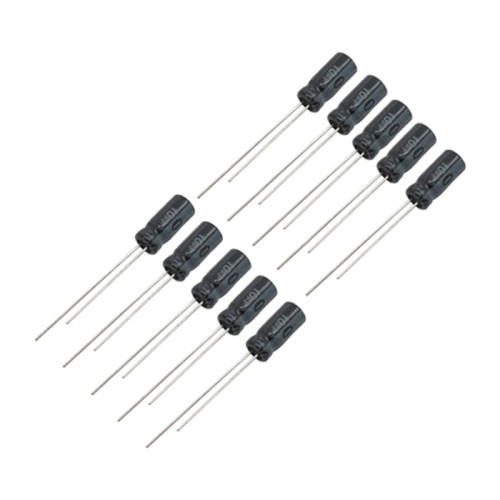

1000 PCS 10 µF, 25 V Electrolytic Capacitor

The 10 µF, 25 V electrolytic capacitor is a commonly used component in electronic circuits, typically built in a cylindrical shape. Despite its small size, it offers high capacitance. The unit of measurement for this capacitor is microfarads, clearly marked numerically on its body, allowing users to easily identify its value. These electrolytic capacitors have positive and negative leads, with the negative lead indicated by a white stripe, and in new capacitors, the negative lead is usually shorter than the positive one.

Correct polarity is crucial when installing a 10 µF, 25 V capacitor, as incorrect connection can damage both the capacitor and other components. These electrolytic capacitors are primarily used for smoothing voltage, reducing ripple, and eliminating low-frequency noise in power supply sections. They are also used in coupling and DC-blocking applications, similar to ceramic capacitors, playing an important role in stabilizing circuit performance.

The 10 µF, 25 V electrolytic capacitor is suitable for both analog and digital circuits. Weighing only 0.14 g, it is easy to install in simple or complex boards. Its maximum operating voltage is 25 V, and its capacitance is 10 µF. Proper usage includes observing polarity and avoiding voltages above the rated value.

These features make the 10 µF, 25 V capacitor ideal for educational projects, electronic board assembly, and industrial circuits. Its compact size and lightweight design also allow installation in tight spaces where larger capacitors cannot fit.

Applications of the 10 µF, 25 V electrolytic capacitor

1. Smoothing and reducing voltage ripple in power supply circuits
2. Eliminating low-frequency noise in analog and digital circuits
3. Coupling and DC-blocking in audio amplifiers and signal circuits
4. Stabilizing voltage in switching power supplies and noise-sensitive circuits
5. Use in educational projects and small electronic boards
6. Protecting sensitive components from sudden voltage changes

Specifications of the 10 uF, 25 V capacitor

1. Capacitor Type: Electrolytic
2. Capacitance: 10 µF
3. Maximum Operating Voltage: 25 V DC
4. Lead Format: Radial
5. Lead Spacing: 1.7 mm
6. Lead Diameter: 0.4 mm
7. Capacitor Diameter: 4 mm
8. Capacitor Height: 8 mm
9. Operating Temperature Range: -40 °C to 105 °C
10. Weight: 0.14 g
