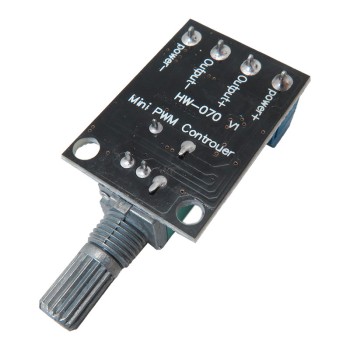

10A DC Motor PWM Speed ​​Control Module

controlling the speed and rotation of electric motors is an important and widely used task in various industries. by controlling the speed of the motors, you can adjust their power according to needs. additionally, by increasing and decreasing the motor's speed under different conditions, you can control the speed of object transfer. this 10A DC Motor PWM Speed ​​Control Module operates at a voltage of 6 to 15 volts dc and features the ne555 chip, which generates pwm pulses to control the output. the current when this module is powered on is about 2 milliamps, and there is no need to turn off the module for extended periods.
the pwm speed control module with a voltage range of 5 to 16 volts and 10 amps has screw terminals for connecting the input power voltage and motor cables. simply connect the motor and power cables, and then you can control the motor speed using the knob on the module.

applications of PWM speed control module 5 to 16 volts 10A:

specifications of the 10A PWM controller module:

1. maximum voltage: 16 volts
2. minimum voltage: 5 volts
3. current: 10 amperes
4. maximum short-circuit current: 20 amperes
5. duty cycle: 0 to 99 percent
6. starting momentary current: 2 milliamperes
7. efficiency up to 98 percent
