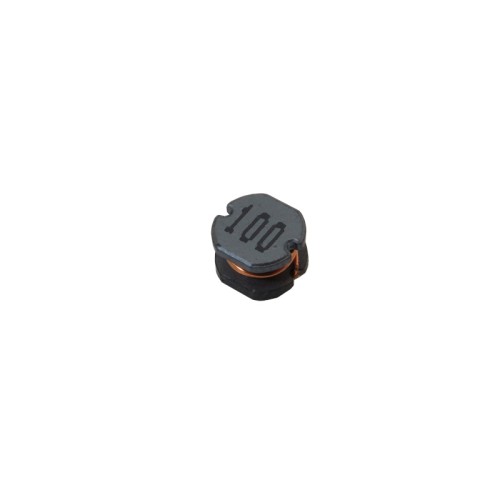

10UH SMD Inductor Size (7x7x5)

10µH (10uH) SMD Inductor is one of the key components in modern electronic circuit design, playing an important role in noise filtering, electromagnetic interference (EMI) reduction, and energy storage. With an inductance value of 10 microhenry, this inductor is ideal for use in switching power supplies, voltage regulators, DC-DC converters, control circuits, and telecommunications equipment.

Its SMD (Surface-Mount Device) design helps reduce PCB space and increases assembly speed, making it widely used in industrial production and compact electronic boards. This SMD inductor offers stable performance, low losses, and reliable operation at high frequencies, making it a dependable choice for both professional and semi-professional electronic projects.

Using this inductor in filtering and current stabilization circuits improves overall system efficiency and helps extend the lifespan of other electronic components. Thanks to its small size, easy installation, and compatibility with automated soldering processes, the 10µH SMD inductor is an ideal option for circuit designers, repair technicians, and electronics enthusiasts.

This compact 10µH inductor is supplied without magnetic shielding (unshielded). Its small dimensions of 7.8 × 7 × 5 mm make it perfectly suited for surface-mount applications. The operating temperature range is -40°C to +100°C, ensuring reliable performance in a wide range of working environments.

SMD inductor Application:

• Used in switching power supply circuits for effective noise filtering and EMI suppression
• Applied in telecommunication systems for frequency tuning and signal stabilization
• Used in audio equipment to reduce interference and improve sound quality
• Suitable for industrial control circuits to minimize current fluctuations and improve stability
• Used in radio-frequency (RF) circuits for signal filtering and amplification support

power SMD inductor Specification:

1. Component Type: Inductor
2. Inductance Value: 10µH (10 microhenry)
3. Mounting Type: SMD – Surface Mount
4. Dimensions: 7.8 × 7 × 5 mm (L × W × H)
5. Package / Shape: Square / Block type
6. Reflow Soldering Compatible: Yes (suitable for automated soldering)
7. Operating Frequency: Suitable for medium- and high-frequency circuits
8. Performance Stability: High stability
9. Energy Loss: Low loss
