Piezo Electric Ceramic Disc Transducer

This piezoelectric ceramic disc transducer operates at 1.7MHz frequency, converting electrical energy into high-frequency mechanical vibrations that atomize water into fine mist. Ideal for ultrasonic humidifiers, aroma diffusers, fog machines, and DIY mist maker projects. Available in 16mm or 20mm diameter. Features low driving voltage, low power consumption, low impedance, stable waveform, and high conversion efficiency.

Installation & Usage Notes:

• Submersion required: The disc must be in contact with water to function. Running dry will damage the transducer.
• Water level: Keep water level above the disc surface. Most humidifiers use a float or water column to maintain proper depth.
• Driver circuit required: The disc alone cannot be plugged into a wall outlet. It requires an ultrasonic driver circuit (typically 1.7MHz oscillation).
• Polarity: Piezo discs are not polarity sensitive for basic operation, but check your driver circuit specifications.
• Cleaning: Mineral buildup can affect performance. Clean periodically with vinegar or citric acid solution.

Fogger transducer Application:

1. Ultrasonic humidifier: Creates cool mist to add moisture to dry air
2. Aroma diffuser: Atomizes water mixed with essential oils

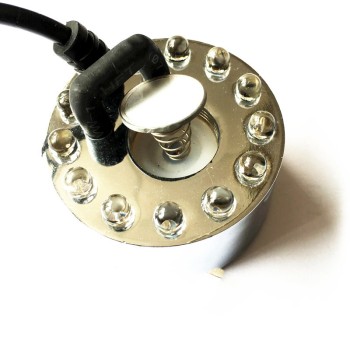

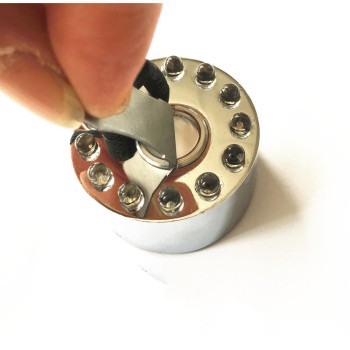

3. Fog machine / mist maker: Produces low-lying fog for parties, haunted houses, or displays
4. DIY humidification: Build your own humidifier for greenhouses, cigar humidors, or terrariums
5. Fountain mister: Adds atmospheric fog to decorative fountains or ponds
6. Industrial atomization: Spray coating, cooling, or dust suppression

Mist maker vibrating disc Specification:

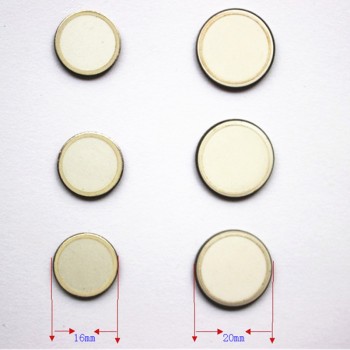

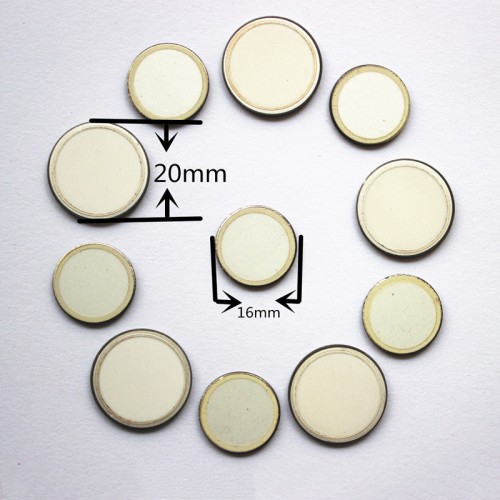

1. Diameter Options: 16mm / 20mm
2. Frequency: 1.7 MHz
3. Cable/PlugNot included (bare disc)
4. Impedance: Low
5. Waveform: Stable
6. Conversion Efficiency: High
7. Dielectric Loss: Low
8. Heat Generation: Low (low calorific value)
9. Chemical Resistance: Corrosion resistant, acid/alkali resistant

 Features:

1. High-Frequency Operation: 1.7MHz ultrasonic frequency for efficient water atomization and fine mist production.
2. Two Size Options: Choose 16mm or 20mm diameter to fit different humidifier models and applications.
3. Low Driving Voltage: Operates with standard ultrasonic driver circuits – energy efficient.
4. Low Power Consumption: Minimal energy draw while producing consistent mist output.
5. Low Impedance: Matches well with common transducer driver circuits.
6. Stable Waveform: Consistent performance over time for reliable operation.
7. High Conversion Efficiency: Maximizes mist output per unit of input power.
8. Durable Construction: Low dielectric loss and low calorific value (minimal heat generation).
9. Chemical Resistant: Corrosion resistant, acid resistant, and alkali resistant for use with various water types and additives.
