0.91 OLED Display

0.91 OLED Display
Click image for Gallery
  • Product Code:SQ4491
  • Availability: 10000
  • $1.50
  • Ex Tax:$1.50

Available Options

This product has a minimum quantity of 2

Tags: 0.91 inch OLED Display, SSD1306 OLED driver, 128x32 Oled display

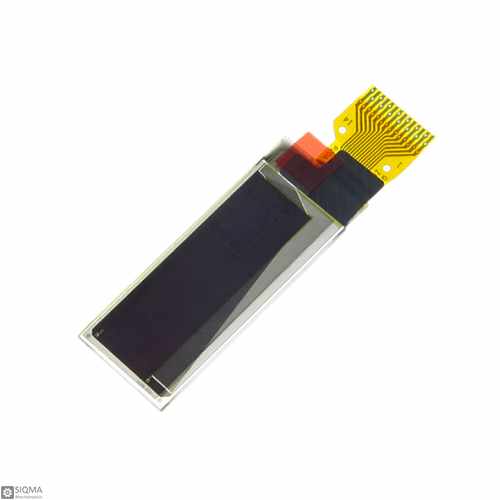

0.91 OLED Display Board is 0.91 inches with a resolution of the 128x32 pixel, mono-color (White or Yellow or Sky Blue) passive matrix micro OLED display, which is controlled by SSD1306 display driver chip. OLED (Organic Light Emitting Diodes) is a flat light emitting technology, which is developed by placing a series of organic thin films between two conductors. By applying electricity, a bright light starts emitting. Because of not requiring a backlight and their structure nature, OLED displays are thinner, clearer, brighter, higher contrast, wider viewing angles, and more efficient than other LCDs and displays.
This OLED is supplied with a digital voltage, 2.6V up to 3.5V DC, and interfaces with external Arduino boards through the I2C interface. This OLED display is equipped with 14 pins flat cable.

0.91 inch OLED Application:

  1. wearable devices
  2. mp3 players
  3. portable devices
  4. personal care appliances
  5. voice recorder pens
  6. smart health devices

0.91 inch OLED Features:

  1. Driver IC: SSD1306
  2. Size: 0.91 inch
  3. Resolution: 128 x 32 Pixel
  4. Interface type: I2C
  5. Pin Number: 14Pin
  6. Light Color: white,blue (Optional)
  7. Input Voltage: 2.6V To 3.5V
  8. Operating Temperature: -30°C ~ +70°C
  9. Size: 30mm x11.5mm x 1.45mm
  10. Display size: 22.38mm x 5.58mm

0.91 OLED 128X32 Pins Description:

  1. C2P
  2. C2N
  3. C1P
  4. C1N
  5. VBAT
  6. VBREF
  7. VSS
  8. VDD
  9. RES
  10. SCL
  11. SDA
  12. IREF
  13. VCOMH
  14. VCC


  1. Arduino OLED 0.91 inch Link
  2. 0.91 OLED Display datasheet Link
  3. SSD1306 OLED driver Link
Display Properties
Color white,blue (Optional)
Driver IC SSD1306
Resolution 128 x 32 Pixel
Screen Size 0.91 inch
Interface Type I2C
Electrical Parameters
Input Voltage 2.6V To 3.5V
Board Parameters
Pin Count 14 Pin
Physical Parameters
Size 30mm x11.5mm x 1.45mm
Environmental Conditions and Safety
Operating Temprature -30°C ~ +70°C
Storage temprature -40°C ~ +80°C
