0.66 OLED Display shield 64x48 pixel

0.66 OLED Display shield 64x48 pixel
  • Product Code:SQ4749
  • Availability: In Stock
  • $2.80
  •
  • Ex Tax:$2.80
This product has a minimum quantity of 2
+
-


Tags: I2C Display, 0.66 OLED Display, 64x48 display module

Description:

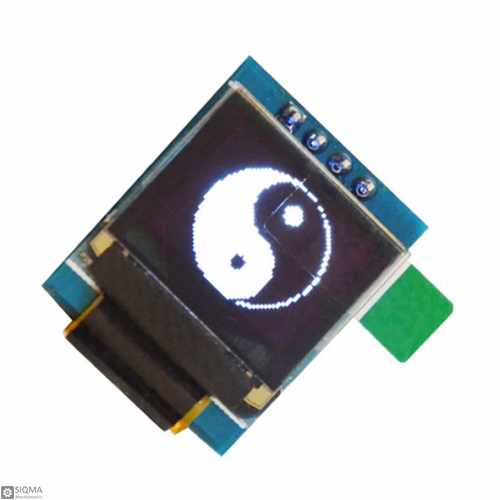

0.66 OLED Display module is 0.66 inches with a resolution of the 64x48 pixel, mono-color (White) passive matrix micro OLED display, which is controlled by SSD1306 display driver chip.
OLED (Organic Light Emitting Diodes) is a flat light emitting technology, which is developed by placing a series of organic thin films between two conductors. By applying electricity, a bright light starts emitting. Because of not requiring a backlight and their structure nature, OLED displays are thinner, clearer, brighter, higher contrast, wider viewing angles, and more efficient than other LCDs and displays.
This 64x48 OLED display series utilizes a COG structure, which is ultra-thin and no need any backlight elimination.
So it is a lightweight and low power consumption LCD. Their response time is faster than other LCDs. Their future technology wants to make them more transparent, flexible, foldable and even rollable and stretchable.
This SSD1306 64X48 OLED display module is supplied with a digital voltage, 3V up to 5V DC, and interfaces with external Arduino boards through the I2C interface.  Also, OLED displays have the best image quality ever, which the bright and crisp dots can easily be seen and any tiny fonts truly readable, thus this tiny display can be used in wearable devices, mp3 players, portable devices, personal care appliances, voice recorder pens, smart health devices, etc.

0.66 OLED Display board Application:

  1. Health care devices
  2. portable device
  3. sport devices

0.66 inch 64x48 OLED specification:

  1. Driver IC: SSD1306
  2. Display Size: 0.66 inch
  3. Resolution: 64x48 Pixel
  4. Interface type: I2C
  5. Operating Voltage: 3.3V - 5V
  6. Display color: White
  7. Pin number: 4 Pin
  8. Dimension: 23.44mm x 19mm

0.66 OLED Pin shield Description:

  1. GND: Power Ground
  2. VCC: 3.3VDC ~ 5 VDC
  3. SCL: Clock line
  4. SDA: Data Line

Document:

  1. 0.66 OLED arduino Link
  2. SSD1306 64x48 OLED module datasheet Link
  3. SSD1306 OLED Library Link
Display Properties
Color White
Driver IC SSD1306
Resolution 64x48 Pixel
Screen Size 0.66 inch
Type OLED
Interfaces
Interface Type I2C
Electrical Parameters
Operating Voltage 3.3V - 5V
Board Parameters
Pin Count 4 Pin
Physical Parameters
Size 23.44mm x 19mm
