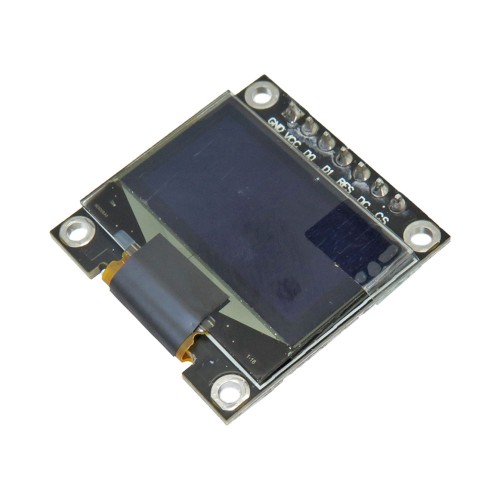

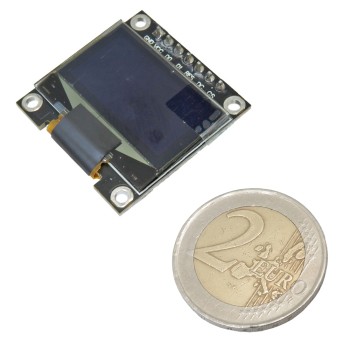

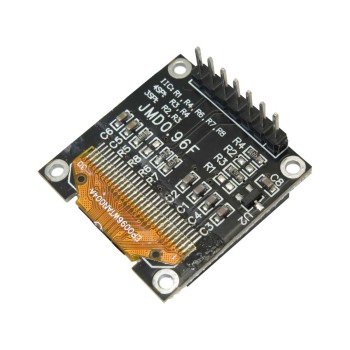

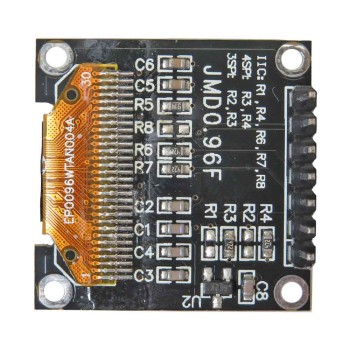

0.96 inch OLED display module with SPI and IIC communication and SSD1306 driver chip

OLED display module are high-contrast and high-resolution displays, thus providing clear readability for the user. oled displays do not require a backlight and the pixels illuminate themselves, making them thinner and clearer with higher contrast compared to liquid crystal displays (lcds), in addition to consuming less power. the ssd1306 chip is a powerful cmos driver controller. this driver supports i2c and spi communication protocols, and since the i2c protocol only requires two pins for connection, both pins can be used to power the microcontroller. the viewing angle of the display is 160 degrees, and its size is 0.96 inches. the display has 8 rows and 128 columns.

application of 0.96 inch OLED display module:

1. portable digital media players such as: mobile phones, mp3 players
2. advertising applications
3. electronic projects
4. smart homes
5. medical devices
6. smart control
7. calculator

specifications of the SSD1306 driver chip:
