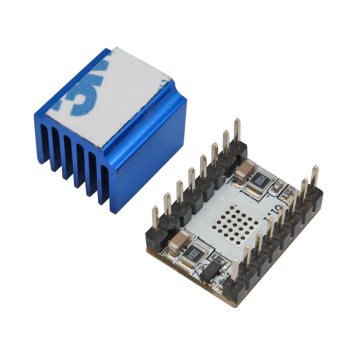

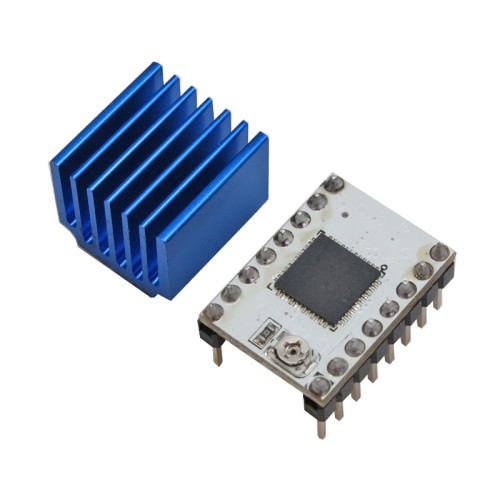

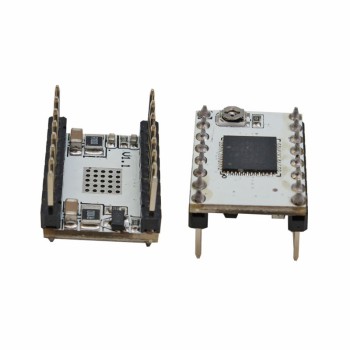

TB67S109 Stepper Motor Driver Module [9V-50V] [4A]

Description:
The TB67S109A is a two-phase bipolar stepping motor driver that uses a PWM chopper. It employs four layers of thick copper precipitation PCB with automatic patch processing. It can drive 57 stepper motors. It uses the indexer (DIR/STEP) control interface. The built-in error detection circuit in chip includes the thermal shutdown (TSD), over-current shutdown (ISD), and power-on reset (POR). This stepper motor driver module can be used separately or in combination with a CNC or 3D printer shield. This driver is suitable for motors that require higher currents, such as a Nema 23 stepper motor.

Features:
Main Chip: TB67S109
Channel: 2 Channel
Motor Voltage: 9V ~ 50V
Maximum Motor Current: 4A per Channel
Operating Voltage: 3.3V, 5V
A current limit that can be set with the potentiometer
Supports full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Security built-in for high temperatures and high currents
Comes with cooling block for better cooling
Pin Number: 16 Pins

Note:
1. Be sure to install the heatsink and air cooling. Do not run the module without cooling for long time use.
2. Turn off the power supply when you plug/unplug the driver.
3. Be sure the heatsink is not in contact with the driver pin or any other conductive position.
