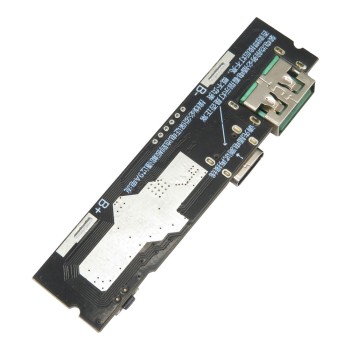

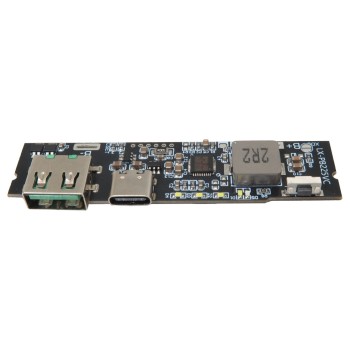

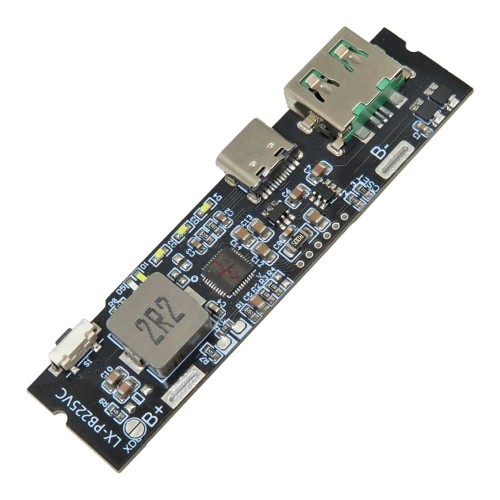

SW6106C Fast Charging Power Bank Module

The SW6106 18W Dual-Output Fast Charging Power Bank Module is a compact and advanced solution for fast charging mobile devices and power banks. Its intelligent design integrates multiple functions into a single chip, enabling dual-direction charging with currents up to 4A and a maximum power of 18W. This module supports PD, QC3.0, Huawei FCP, PE, SFCP, and Apple 2.4A protocols, making it compatible with a wide range of phones and power banks.

The SW6106 18W Dual Output Fast Charging Power Bank Module accepts an input voltage from 4.75V to 13.5V and delivers output voltages of 5V, 9V, or 12V depending on the device protocol. The output current is adjustable up to 4A. Its PCB measures 72 × 18 × 7 mm, allowing easy integration into portable power banks and compact electronic projects. One notable feature of this Lithium Battery Fast Charging Module is its LED indicators. Several LEDs remain constantly on, while the charging LED blinks to indicate active charging.

For output, the number of lit LEDs reflects the output current, with the first LED featuring dual white and green colors. The green LED lights up during fast input or output charging and stays off otherwise. This Power Bank Board with SW6106 Chip is ideal for various electronic projects, including portable power banks, lighting systems, and mobile charging modules.

With minimal additional components, a professional dual-direction charging system can be built that is both safe and energy-efficient. The design of the SW6106C Fast Charging Power Bank Module extends the battery life of mobile devices and reduces charging time. Its precise management of input and output voltage and current ensures stable and safe operation across different environments and device types.

Applications of the SW6106C Fast Charging Power Bank Module

1. Building portable power banks with dual-direction fast charging
2. Designing Lithium Battery Fast Charging Modules for phones and tablets
3. Use in portable lighting systems with optimized energy management
4. Creating fast chargers for small and portable electronic devices
5. Application in educational and research electronics projects requiring precise voltage and current
6. Designing professional charging modules supporting multiple fast-charging protocols
7. Additional uses: energy management control, lighting drivers, and energy consumption calculation with minimal extra components

Specifications of the 18W 4A 5 to 12V Dual Output Fast Charging Module with SW6106C Chip

1. Processing Chip: SW6106, integrating all dual-direction charging functions into a single chip
2. Charging Type: Dual-direction fast charging supporting PD, QC3.0, Huawei FCP, PE, SFCP, and Apple 2.4A protocols
3. Maximum Input/Output Power: 18W
4. Maximum Output Current: 4A
5. Input Voltage: 4.75V – 13.5V
6. Output Voltage: 5V, 9V, and 12V depending on the device protocol
7. Fast Input Charging Mode: Requires a QC3.0 charger, typically triggered up to 12V
8. Fast Output Charging Mode: If the device does not support QC/FCP, output defaults to 5V
9. Support for Other Protocols: Apple 2.4A and other common fast-charging protocols
10. Input LED Indicator System: First LEDs always on, charging LEDs blink during active charging
11. Output LED Indicator System: Number of lit LEDs indicates output current; the first LED has dual white/green colors, with green indicating fast charging
12. Module Dimensions: 72 × 18 × 7 mm
