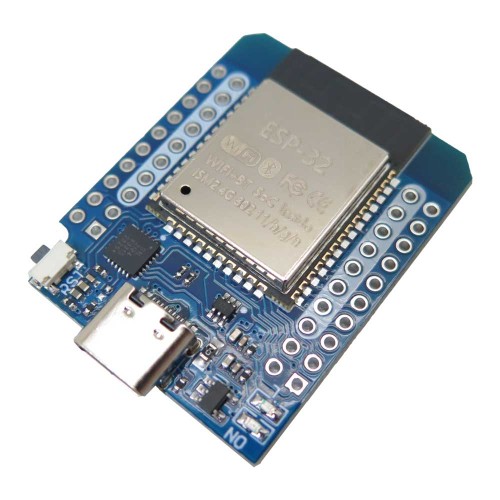

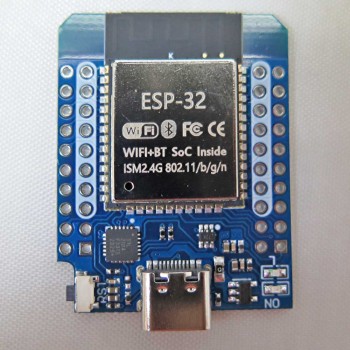

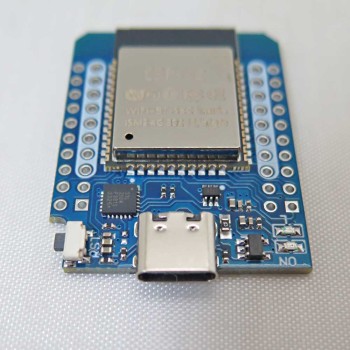

WeMos Mini D1 Development Board with ESP-WROOM-32 Core and Built-in Bluetooth / Wi-Fi

MH-ET LIVE development board has ESP-WROOM-32 module, with built-in Wi-Fi and Bluetooth (BR/EDR/BLE) capabilities. ESP32 is a chip designed with TSMC technology for very low power consumption, which allows you to achieve the best performance despite high efficiency.

Since the static current of this chip is less than 5μA, it is suitable for use with batteries.

This board has Wi-Fi, Bluetooth and Bluetooth LE, as well as IO pins and analog inputs. ESP-WROOM-32 can be programmed under Arduino and MicroPython.

This processor works at frequencies of up to 240 MHz with two cores, and has up to 520 KB of SRAM memory and up to 16 MB of FLASH memory.

All I/O pins are interrupt, PWM, I2C and single-wire capable, except for the DO pin. It also features multiple analog-to-digital and digital-to-analog channels, hardware-accelerated encoding, pulse width modulation, capacitive touch interfaces, and much more.

ESP-WROOM-32 Core module Application:

1. Internet of Things projects
2. smart House
3. robotic

WeMos Mini D1 Development Board Specifications:

1. Power supply voltage: (USB) 5V DC
2. Input/output voltage: 3.3V DC
3. Minimum operating current: 500 mA
4. Microprocessor: dual-core Tensilica LX6
5. Clock frequency: up to 240 MHz
6. Chipset: ESP32-D0WDQ6

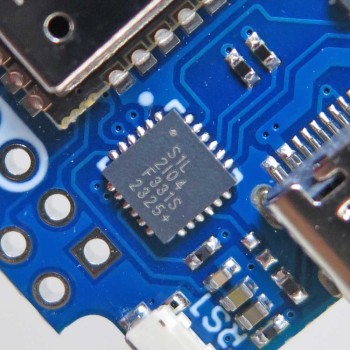

7. USB TTL: CH9102X

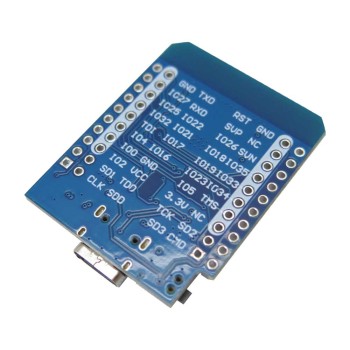

8. GPIO: 32
9. ADC: 4
10. DAC: 1
11. BT: version 4.2 (BR/EDR/BLE)
12. Antenna: Internal PCB
13. OM: 448KB – SRAM: 520KB
14. Wi-Fi: 2.4 GHz
15. Wi-Fi receiver: 802.11 BGN integrated
16. Sleep current: 2 μA
17. UDP throughput: 135 Mbps continuously
18. It supports direct, station, softAP and Wi-Fi sniffer modes
19. Class 1, Class 2 and Class 3 transmitter without external amplifier
20. All GAT-based profiles are supported
21. Security: Support for standard IEEE 802.11 security features, including WFA, WPA/WPA2, and WAPI.
22. Micro USB connector for programming directly from the computer
23. Size: 39mm x 31.36mm
24. Weight: 12 grams
