JGY-370 DC Gear Motor [12V] [160rpm]

JGY-370 DC Gear Motor [12V] [160rpm]
Click image for Gallery
  • Product Code:SQ4770
  • Availability: 10000
  • $4.40
  •
  • Ex Tax:$4.40
This product has a minimum quantity of 2
+
-


Tags: Gear Motor, Robotic Motor, Worm Gear Motor, 12V Motor, DC Motor

Description:
A geared DC Motor has a gear assembly attached to the motor.
The speed of the motor is counted in terms of rotations of the shaft per minute and is termed as RPM.
The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure.
The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.
JGY370 Motors are permanent magnet motors known for delivering high power in a compact, portable package. JGY-370 DC motors Ideal for applications requiring motor speed adjustment and reversing capabilities.
In most cases, the addition of a gearbox is intended to limit the speed of the motor's shaft and increase the motor's ability to output torque.

Features:
Model: JGY-370
Motor Voltage: 12V
No-load Speed: 160rpm
No-load Current: 35mA
Load Speed: 128rpm
Load Current: 180mA
Torque: 2.2kg.cm (Stall Torque), 0.55kg.cm (Load Torque)

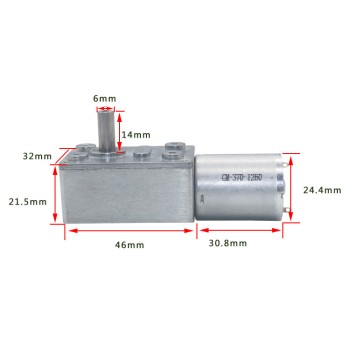

Size: 80mm x 120mm x 32mm

Applications:
Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines, and Stage lighting.

Package Include:
1 x JGY-370 12V DC Worm Gear Motor

Motor Specifications
Motor Size 80mm x 120mm x 32mm
No Load Current 35mA
No-Load Speed 160rpm
Torque 2.2kg.cm (Stall Torque), 0.55kg.cm (Load Torque)
Voltage 12V
Load Speed 128rpm
Load Current 180mA
